Pick And Place Machine Types
According to the action of pick and place machine can be divided into moving arm arch type and turret type pick and place machine.
According to the degree of automation, it can be divided into semi-automatic manual type, semi-automatic type and fully automatic SMT machine.
According to the function and speed of pick and place machine, it can be divided into high-precision multi-functional SMT machine (also called universal machine, mainly paste high-precision, narrow pitch, large size and irregular devices) and high-speed pick and place machine (mainly paste small components).
Depending on the position of SMT machine feeder and the number of pick and place machine heads, they can be divided into large, medium and small machines and modular machines.
Technical Parameter

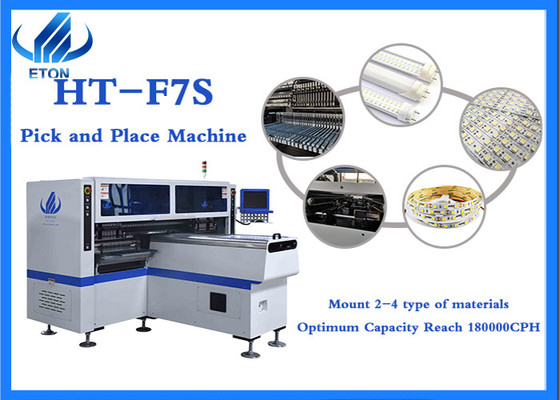

| HT-F7S |
Specifications |
| Length Width Height |
2700*2450*1530mm |
| PCB Length Width |
MAX:1200*330mm
MIN:50*50mm
|
| PCB Thickness |
0.5 ~ 5mm |
| Mount Mode |
Group to have and group to bond |
| Not available. of Camera |
5 sets of imported cameras |
| System Vision |
Vision link, Mark correction |
| Mounting Speed |
180000CPH |
| Element |
LED30140/3528/5050/3030/5630/5730/4014/2835 and resistor etc. |
| Speed Components |
0.2mm |
| Eat Station |
68PCS |
| Not available. of the Nozzles |
34PCS |
ETON mission: professionalism, excellent technology, sharing results.
ETON goal: to create a national brand and build an international Chinese enterprise.
ETON purpose: to create value for customers and create benefits for the society.
ETON vision: determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
♦ Clients:
ETON as the leading manufacturer of global photo electronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.Take India as an example,We have many big clients in India, Such as RK,SURYA,Fiem,Calcom,POLYCRB, etc. We have sold over a hundred machines to India.
♦ Our Office and Factory:
We have about 50000 square meters industrial production park and around 300 people in the company. In the market, about 80% of large LED factories are our customers.
ETON as the biggest high speed pick and place machine in China, we are not only famous with high speed, but also famous with the good service . ETON set up office in different cities, like Shenzhen, Shanghai, Zhongshan, India Delhi, Turkey, Egypt, etc.
If you buy our machine, we provide free install and training for you, will sent engineer to your factory to install and training.
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
And we also give professional technology suggestion with our clients.
FAQ
What kind of machine will provide besides pick and place machine ?
A: ETON as the largest manufacturer of SMT machine in China, we provide whole SMT line, such as reflow oven, stencil printer, conveyor, pick and place machine, Loader, Unloader, etc.
Do you have middle speed pick and place machine for led tube/street light/display, lens/panel/led bulb/dob/etc ?
A: Yes! We have different module pick and place machine, for middle speed mounter, we have two kinds of machine, one is RT-1, itis 10 heads with 35000 cph, another is E8S with 45000 theoretical speed.
