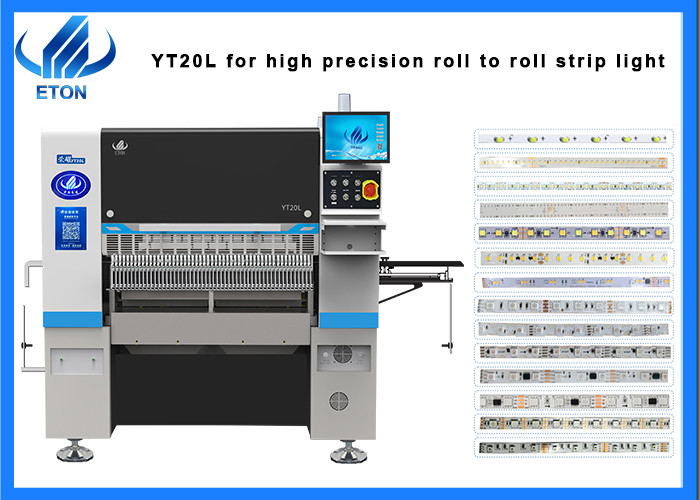

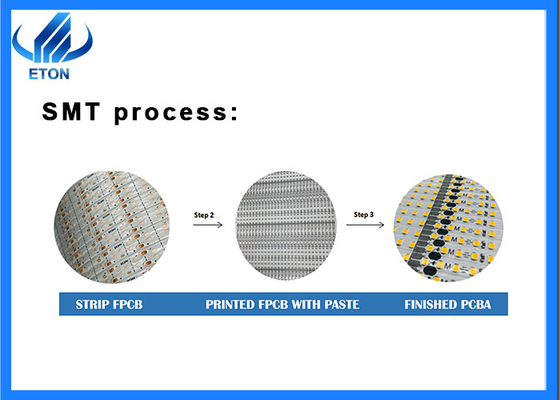

0201-Compatible SMT Mounter for Soft LED Strips | High Precision & Efficiency

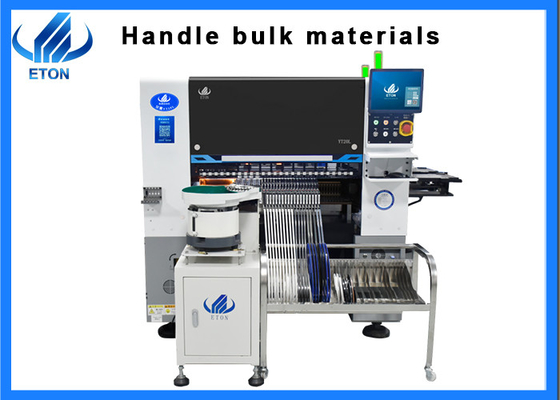

Machine main features
1.LED chip, chips components, IC, etc one time mounting;

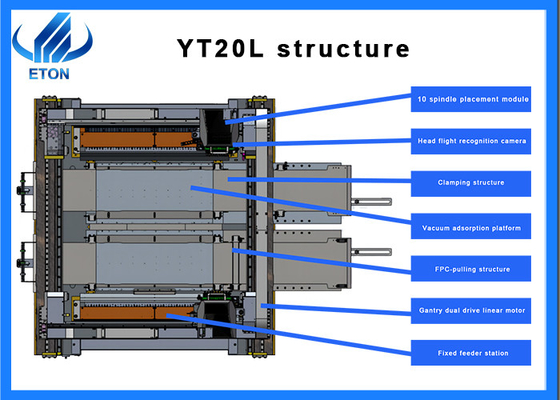

2.Two lane, two gantry, can mount two different products at same time ;
3.Save much time for production changeover and sample proofing;
4.X,Y, and Z axis all adopt self-developed high-end magnetic linear motor;
5.Y axis adopt double drive gantry structure
6.Apply to 0201mm~15*15mm tape reel package.
Machine main parameter
|
Model
|
YT20L
|
|
Dimension
|
2240mm*2070mm*1650mm
|
|
Total Weight
|
2200kg
|
|
PCB Length Width
|
250±10mm*any length(option)
|
|
PCB Thickness
|
0.1-0.5mm
|
|
PCB Clamping
|
Cylinder clamping, vacuum adsorption
|
|
Fixed rail
|
2 Rails, 2 gantries
|
|
System
|
Windows10
|
|
Software
|
R&D independently
|
|
Off-line programming
|
Available
|
|
Input Device
|
Keyboard, Mouse
|
|
No. of Camera
|
2 PCS (Head flight vision camera)
|
|
4 PCS Mark camera
|
|
Repeat Precision
|
CHIP±0.03mm IC±0.025mm Cpk ≧1.33 (3σ)
|
|
Mounting Height
|
Standard: ≦16mm Special setting:≦10mm
|
|
Mounting Speed
|
98000 CPH(Under best condition)
|
|
Components
|
0201~15*15MM packaging material
|
|
Components Space
|
0.2mm
|
|
No. of Feeders Station
|
Double side: 104 PCS (Single side:52PCS)
|
|
No. Of spindle
|
Double side: 20 PCS (Single side:10PCS)
|
|
Power
|
220AC 50HZ
|
|
Power Consumption
|
1.5kw
|
Our advantage
ETON is the pioneer of SMT machine field in China which have more than 20 years experiences. And owned CCC, SIRA, CE certificates with 14 invention patents, 135 practical patents, 55 software copyrights of intellectual property technologies.
Oversea market:The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
Related machine
We can provide a whole SMT production line,led light production line:
1.Pick and place machine
2. Loader machine
3. Conveyor machine
4. Stencil printer machine
5. Reflow oven machine
6. Unloader machine
7. Solder paste mixer
8. Roll to roll led strip light assembly machine
Service
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
FAQ
Q. Can I go and see if you have sold the equipment to India?
A. Yes, we have sold our machine in India, but for the fact we can't decide it for my customer, but I will try to contact my customer. Hope you can understand, because no one wants their competitors to visit their manufacturing site.
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
