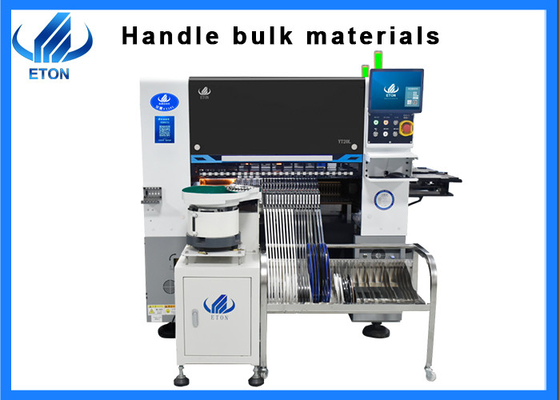

Advanced SMT Pick and Place Machine for Flexible LED Strip Production 220V, R&D-Driven Efficiency
Machine main features
1.LED chip, chips components, IC, etc one time mounting;
2.Two lane, two gantry, can mount two different products at same time ;
3.Save much time for production changeover and sample proofing;
4.X,Y, and Z axis all adopt self-developed high-end magnetic linear motor;
5.Y axis adopt double drive gantry structure
6.Apply to 0201mm~15*15mm tape reel package.
Machine main parameter
|
Model
|
YT20L
|
|
Dimension
|
2240mm*2070mm*1650mm
|
|
Total Weight
|
2200kg
|
|
PCB Length Width
|
250±10mm*any length(option)
|
|
PCB Thickness
|
0.1-0.5mm
|
|
PCB Clamping
|
Cylinder clamping, vacuum adsorption
|
|
Fixed rail
|
2 Rails, 2 gantries
|
|
System
|
Windows10
|
|
Software
|
R&D independently
|
|
Off-line programming
|
Available
|
|
Input Device
|
Keyboard, Mouse
|
|
No. of Camera
|
2 PCS (Head flight vision camera)
|
|
4 PCS Mark camera
|
|
Repeat Precision
|
CHIP±0.03mm IC±0.025mm Cpk ≧1.33 (3σ)
|
|
Mounting Height
|
Standard: ≦16mm Special setting:≦10mm
|
|
Mounting Speed
|
98000 CPH(Under best condition)
|
|
Components
|
0201~15*15MM packaging material
|
|
Components Space
|
0.2mm
|
|
No. of Feeders Station
|
Double side: 104 PCS (Single side:52PCS)
|
|
No. Of spindle
|
Double side: 20 PCS (Single side:10PCS)
|
|
Power
|
220AC 50HZ
|
|
Power Consumption
|
1.5kw
|

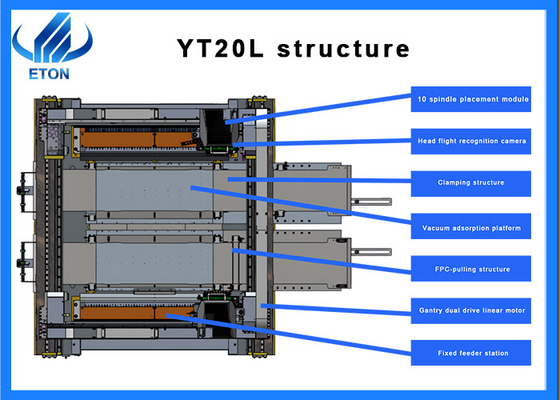

Machine main part

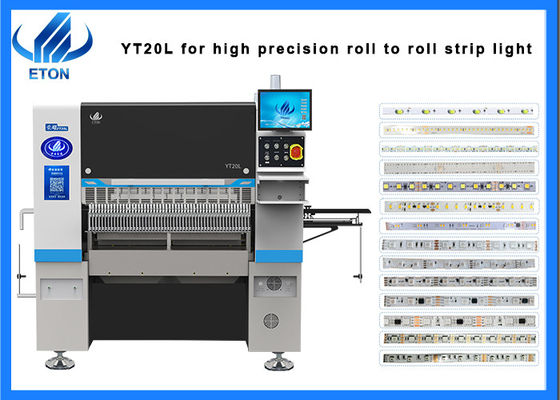

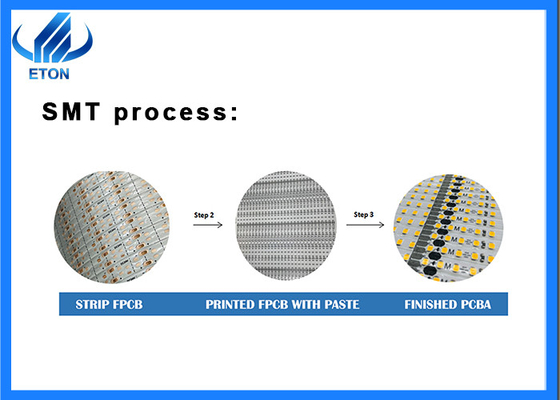

Machine application
Market
ETON company which not only provide our high speed SMT machine in Chinese market, but also overseas market to let our customer enjoy one site service, efficient production and low consumption.
Our Exhibitions
Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Related machine
ETON is a leading SMT high speed pick and place machine manufacturer in China, and we also provide whole line solution with peripheral devices as stencil printer, conveyor, glue dispenser, transitional and reflow oven etc.
FAQ
Q. Can I use CIF price?
A. CIF price need add the freight and insurance fee, while for the part of EXW which is cheaper and convenient factor as a suitable price for both sides.
Q. What is your machines quality?
A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 14 invention patents, 135 practical patents, 49 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
