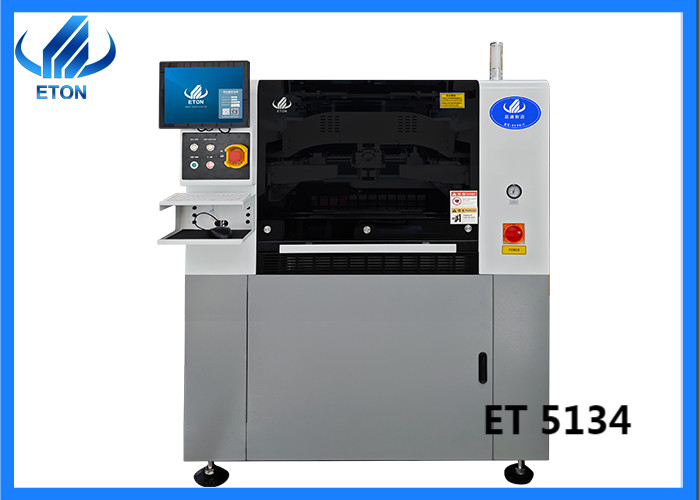

AUTOMATIC STENCIL PRINTER ET5134
SMT automatic Stencil Printer:
- ① Easy-to-learn and easy-to-use friendly operation interface
- ② With good Human-machine dialogue function
- ③ Make program files with teaching and navigation functions,with prompts for each step.
- ④ One-key switch between Chinese and English, with operation log, fault record analysis and diagnosis and other functions.
- ⑤ X,Y axis adopts high-precision grinding ball screw,driven by servo motors at both side.
- ⑥ The polarizer is added inside, and the Mark of different shapes is automatically and accurately grasped, and the upper, lower and coaxial three-way uniform light sources.
Technical parameter
|
Model
|
ET5134
|
|
Screen Frames
|
Max Screen Frames size: 737mm*737mm
Min Screen Frames size: 370mm*370mm
Thickness: 20-40mm
|
|
HCP-CT(Including cleaning and printing)
|
14S
|
|
NPC-CT(Not include cleaning and printing)
|
<7S
|
|
Product Changeover
|
<5min
|
|
Repeat Position Accuracy
|
±0.01mm CPK“2.0
|
|
Printing Accuracy
|
±0.025mm CPK“2.0
|
|
PCB Min Size
|
50*50mm
|
|
PCB Max Size
|
510*340mm
|
|
PCB Thickness
|
0.4~6mm
|
|
Height of board
|
25mm (Exceeding special items) pin
|
|
PCB board edge clearance
|
2.5mm
|
|
PCB Warpage
|
<1%
|
|
Max PCB weight
|
4kg
|
|
Transport Height
|
900±40mm
|
|
Transmission method
|
One-stage transport rail
|
|
Transport Direction
|
Left-right/right-left/in and out the same
|
|
Transport Speed
|
Segment Control,1500mm/s(Max)
|
|
Support System
|
 Magnetic Pin/Up-down table adjusted/support block by hand
|
|
Printing Mode
|
Single or double squeegee printing
|
|
Squeegee Speed
|
10~200mm/sec
|
|
Squeegee Pressure
|
0.5-25Kg
|
|
Squeegee Angle
|
60°/55°/45°
|
|
Squeegee Type
|
Rubber squeegee/Steel squeegee(Angle 45°/55°/60°) option
|
|
Transport Height
|
900±40mm
|
|
Cleaning System
|
Dry,Wet,Vacuum(Programmable)
|
|
Automatic image system
|
Geometric matching, up-down imaging vision
|
|
Camera Type
|
130 Megapixel Digital camera
|
|
Mark size
|
0.1-6mm
|
|
Camera Cycle Time
|
150ms
|
|
CCD FOV
|
10*8mm
|
|
Mark Number
|
Max: 4pcs
|
|
Stay Away Number
|
Max: 1pcs
|
|
2D Detection
|
Detect low tin/missing print/continuous tin
|
|
Air Consumption
|
Approx: 5L/min
|
|
Working Temperature
|
-20℃~45℃
|
|
Air Required
|
4-6Kgf/cm
|
|
Power
|
220V,50/60HZ 3KW
|
|
Working Environment Humidity
|
30-60%
|
|
Machine Dimensions
|
1650(L)x1270(W)x1660(H)
|
|
Machine Weight
|
Approx:930Kg
|
SMT line solution
1. We provide fulL SMT solution for you;
2. We provide core technology with our equipments;
3. We provide the most professional tech service;
4. We have wealthy experience on SMT factory setup;
5. We can solve any question about SMT.
Service
1.We have local India engineer, as long as you buy the machine, we will arrange engineer to install, debug, and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
2.Chinese engineers provide online services.
3.If necessary, Chinese engineers will come to your factory for free install and training.
4.Besides, India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Packaging & Shipping
Package: Standard export package(Wooden case with vacuum package)
Shipping: Shenzhen port within 15 days after payment
Our client
Focusing on SMT high speed pick and place machine more than 20 years
The products exported to more than 30 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc.
ETON obtained 9 invention patents, 112 practical patents, 12 software copyrights of intellectual property technologies, to be a leading manufacturer of SMT trade.
FAQ
1. How about machine installation and training?
After purchasing our machine, before the machine arrives at the factory, we will check in advance that the pre-installation preparations are in place. If everything is ready, we will arrange for an engineer to come to your home for free installation and training.
2. Is it hard to use your machines because they look big?
No, it's easy to operate, just like you would with a cell phone.
People with SMT operation experience can usually operate independently within 3-5 working days;
People operating SMT machines for the first time can usually operate independently within 8-10 working days
3. Do you have quality certification for your machines?
Yes, of course. Our machines are CE, CCC, SIRA, ISO certified and have their own patents.
4. How long is your machine guaranteed?
Usually one year, during the warranty period, any parts need to be repaired or replaced free of charge.
We also have a technical group for you, if you have any questions in this group, you can share with us directly
Machine operation, we will help you in time, this group will live forever.
5. How many languages is your machine available?
Chinese and English are currently used.
We are also designing more languages to help customers use our machines more easily.
