Equipment Multi - Functional Camera facial machine with led Pcb Pick And Place machine

Equipment Multi - Functional Camera facial machine with led  Pcb Pick And Place machine
Equipment Multi - Functional Camera facial machine with led  Pcb Pick And Place machine

Large Image :  Equipment Multi - Functional Camera facial machine with led Pcb Pick And Place machine

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CE,SIRA,CCC,ISO
Model Number: RT-1

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: EXW USD 33000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per mouth
Detailed Product Description
Name: Pick And Place Machine PCB Thickness: 0.5~5 Mm
PCB Size: 1200*350mm Total Weight: 1250kg
Display: Touch Screen Monitor Feeders: 26 PCS
High Light:

high speed led mounting machine

,

smt assembly machine

pcb 400mm multi-functional imported camera pick and place machine



details

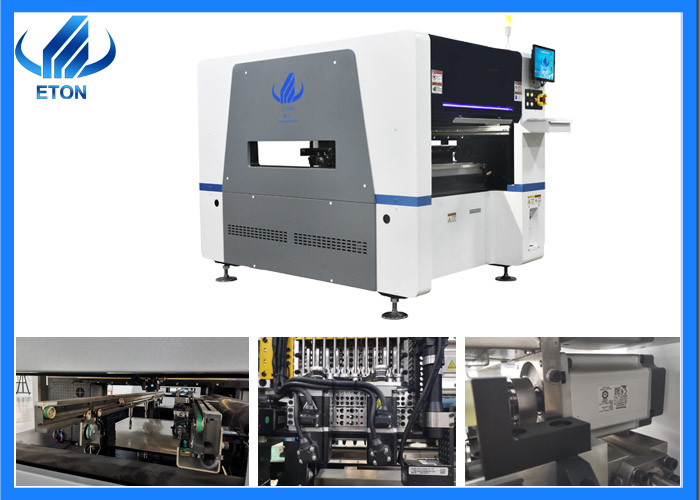

RT-1 small multi-functional pick and place machine. New structure design, PCB board fixed, mounted head XYZ axis movement, flight camera and head movement together, more accurate identification of coordinates, faster speed; Panasonic original servo motor control screw, not easy to wear, high stability; Industrial computer control system, touch display, easy to operate; Mounting large components is faster and more stable.



RT-1 is a high speed full automatic pick and place machine.

RT-1 pick and place machine :26 feeder stations, standard feeder is available.

RT-1 pick and place machine :Use ball screw, servo motor control system imported .

RT-1 pick and place machine :Ten Placement Heads can pick components at the same time.

RT-1 pick and place machine :Time saving by the ten nozzles are examined over the two sets of imported cameras at the same time.

Multi-Vision System: Total four cameras make placement more accurate.

It is a compact placing machine that offers the flexibility (component flexibility, PCB flexibility and production flexibility) and speed to meet the demands of an ever-changing market.

Equipment Multi - Functional Camera facial machine with led  Pcb Pick And Place machine 0

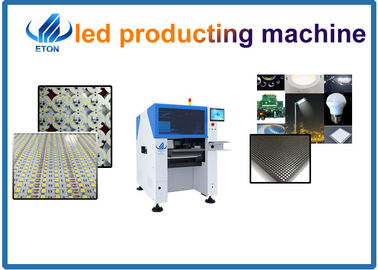

Product Applications

LED house lighting: LED tube, LED bulb, LED ceiling light, led panel, led candle light

LED lighting product: soft led strip, led strip, led module

LED screen.





RT-1 pick and place machine
PCB PCB length width Max:400*350mm min:50*50mm
PCB thickness 0.1~6mm
PCB clamping Electric clamping
Mounting mode

ØGroup to pick and separate to place

ØSeparate to pick and separate to place

O.S. system Windows 7
software R&D independently
display Touch screen monitor
Input device Keyboard , mouse

Vision

system

No.of camera

2 sets of imported camera

Vision alignment ,mark correction

Mounting precision 0.02mm(repeat precision)
Mounting height <25mm
Mounting speed 30000~35000CPH
Components space 0.2mm
Power 380AC 50HZ
Power consumption 6KW
Conveyor transmission Max length:500mm
Transmission speed >1500mm/sec
Transmission direction Single
Transmission mode Auto online drive
Air pressure >5.0kg /cm²
Electrical control Independent research and development by ETON
X,Y,X axis drive way Servo motor control for X,Y,Z axis
Feeding way
Feeding system No.of feeders station 26 PCS
No.of nozzles 8 PCS
Feeding way Electric feeder with double motor





Equipment Multi - Functional Camera facial machine with led  Pcb Pick And Place machine 1





Successful Experience:

ETON's customer in 35 countries around the world

1. We have been helping customers to build a lot of new factories around the world.

2. Training more than 500 experts and technician for customers.

3. Became the most reliable Chinese partner for you.





Our Partners

ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.

Equipment Multi - Functional Camera facial machine with led  Pcb Pick And Place machine 2

FAQ

1. Choose which mode of transportation?

Our modes of transportation are flexible, including water, land and air transportation.

2. Do you have oversea after sale service?

We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.

3. What is the delivery date?

We will deliver the goods after 30 days' deposit.

4. Is this machine easy to operate?

Of course, the operating system supports Chinese-English interface display, easy to understand and operate.

5. Why choose us?

Leading SMT Supplier in China;In the LED industry market share is in an absolute leading position.
