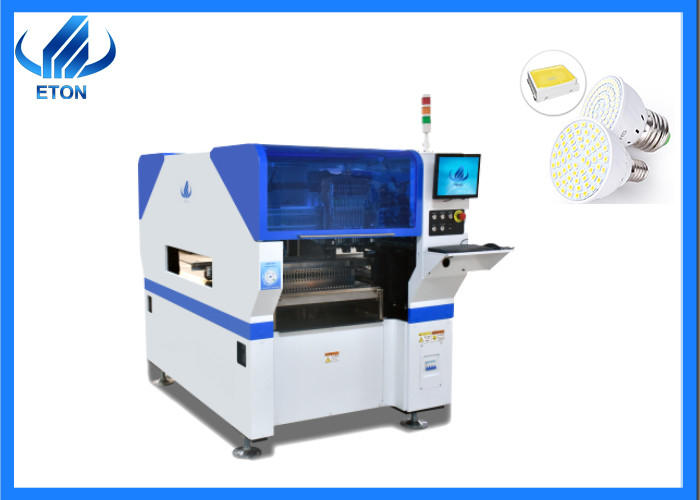

37000CPH Pcb LED Bulb Making Machine Pick And Place Equipment

37000CPH Pcb LED Bulb Making Machine Pick And Place Equipment

LED bulb making can mount 450*350mm pcb electric board making RT-1S pick and place machine

Product description

Dimension: 1200*1930*1500mm

PCB size: max:450*350mm, min:80*80mm

Optimal speed can reach 37000CPH

Can mount minimum size 0402 components, and also can mount less than 22mm high components, incleding led chips, resistors, capacitors, ic, shaped components, inductors, etc.

Suitable for small pcb products, such as led bulb, led linear bulb, led dob bulb, led street light, down-light, driver and small home appliance electronic boards, etc.

Parameter

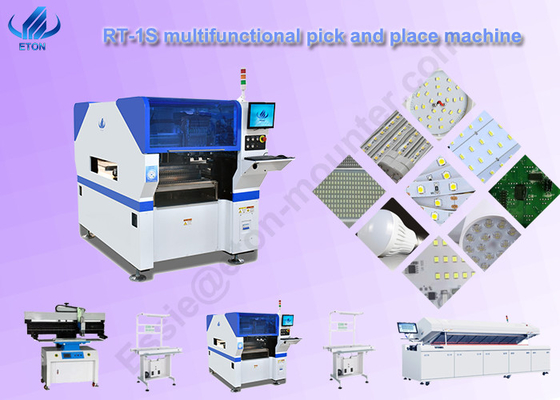

The features of RT-1S pick and place machine

* Multifunctional pick and place machine, suitable for producing LED Bulb, DOB, panel light, down-light, street light, corn
light, power driver, electrical boarded.
* Machine functions: Picking components group or separately and mount on the PCB automatically group.
* Intelligent PCB Clamping mode: Electric clamping, adjustable track width.
* Single module magnetic linear motor, 10 nozzles for each mounting part, total 32 feeder station. Speed reach 40000 cph.
* High precision, Calibration automatically, available for all kinds of components, such as LED, capacitors, resistor, shaped components, etc.
* Easy operational program, much more convenient, automatic vision makes position fixing more accurate and convenient.
* Optinal :8mm,12mm,16,and 24mm automatic feeder, different nozzles and feeding way.

Application

SMT Machine widely apply to different sizes of pcb in different industry, such as led lighting industry, driver board industry,
household application, etc.

SMT line solution

1. We provide fulL SMT solution for you;
2. We provide core technology with our equipments;
3. We provide the most professional tech service;
4. We have wealthy experience on SMT factory setup;
5. We can solve any question about SMT.

Company information

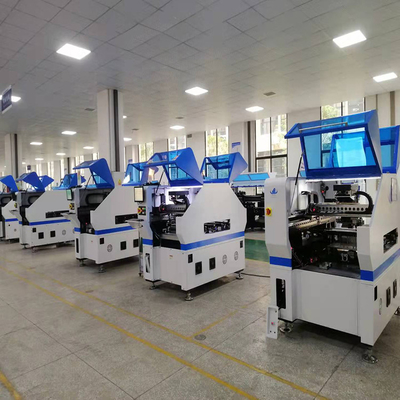

ETON is China’s largest manufacturer of SMT machine, industrial park more than 50000 square meters.
ETON got more than 14 years R&D experience in SMT industry equipped with core technology
ETON Got large more than 80% big led lighting industry market, machine hot sell to more than 20 countries.
ETON R&D Chinese first automatic stencil printer machine for roll to roll 100 m led strip light
ETON R&D super high speed pick and place machine, 250000 CPH, fastest in all over the world

Package and delivery

ETON machine using Vacuum wooden box packaging:
Firstly, Wrap the machine with film
Secondly, Sponge the machine
Thirdly, Use a vacuum bag to compress the air in the machine and encapsulate the machine
Fourthly, Fix the foot cup of the machine with wooden stakes
Fifth, fix the machine again with a rope
Finally, encapsulate the machine in a wooden box

FAQ

Q: How is the training?
A: After purchasing our products, you can send your engineers to study in our factory, or we can send our engineers to your factory to train your staff for you .

Q: Do you have a product certification certificate?
A: Our products have CCC, CE, SRIA certification.
