High Assembly Smt Pick And Place Machine Shaped Comonents Bulb IC Household Appliance

High Assembly Smt Pick And Place Machine Shaped Comonents Bulb IC Household Appliance
High Assembly Smt Pick And Place Machine Shaped Comonents Bulb IC Household Appliance

Large Image :  High Assembly Smt Pick And Place Machine Shaped Comonents Bulb IC Household Appliance

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CCC CE SIRA
Model Number: RT-1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 30 days after pay
Payment Terms: L/C, T/T
Supply Ability: 50 set/month
Detailed Product Description
Name: Pick And Place Machine Module: RT-1
Apply: Led ,capacitor, Resistor, Ic, Shaped Comonents Warranty: One Year
Apply To: SMT Line Service: Free Install And Traning
High Light:

high speed led mounting machine

,

smt assembly machine

AUTOMATIC SMT PICK AND PLACE MACHINE



ETON SMT Machine



As a high-tech company with CCC, CE, SIRA, ETON company provide all SMT machine also support free install and training.



SMT equipment is mainly used for SMT processing. Common SMT equipment and functions are as follows:



Upper board machine:



PCB is placed in Rack to automatically send the board to the suction board machine.



Suction plate machine:



Automatically absorb the PCB and place it on the track, and transfer it to the printing machine.



Printing machine:



Print the solder paste or red glue on the laser steel steel on the printed PCB.



Docking station:



A device that transfers PCB boards.



Reflow Oven:



Use the temperature of SMT solder paste or red glue to set an appropriate temperature curve to complete the soldering action between solder paste and parts.



Unloader:



Through the transmission track, the board is collected in the magzine.

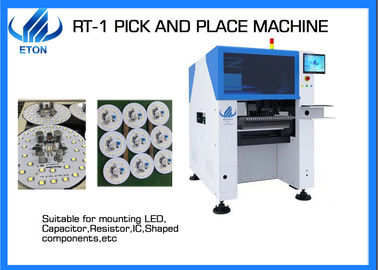

RT-1 pick and place machine



RT-1 is SHENZHEN ETON AUTOMATION CO.,LTD new module. It is very multifunctional ,suitable for mounting many kind of components, like the led, capacitor, resistor, IC, shaped components,etc. The max size can be 20 mm, the min size is 0402.



RT-1 apply to many kind of products, like the LED bulb, led display, led tube, panel light,driver board, etc.



The future of electronic products



Electronic products are showing a trend of miniaturization and multifunctionalization, especially the market of consumer electronic products represented by mobile phones and MP3s has shown explosive growth, further driving the miniaturization of surface mount components and the high assembly of products Density, small and fine pitch devices such as 0201 components, CSP, flipchip, etc. have also entered the practical application of SMT, which has greatly improved the application level of SMT technology and also increased the difficulty of the process.



The main reason for the production of tin beads in the SMT process: PCB



Poor PAD design, poor steel plate opening design, excessive depth or pressure of the component, excessive slope of the profile curve rise, solder paste collapse, and solder paste viscosity is too low.



High Assembly Smt Pick And Place Machine Shaped Comonents Bulb IC Household Appliance 0



Service from ETON company



ETON company have service office in India and Turkey, we provide one year warranty and free install and training.



Besides, about software upgrade,we support free lifetime maintenance.
