Lens High Precision Pick And Place Machine , Multi Functional SMT Chip Shooter

Lens High Precision Pick And Place Machine , Multi Functional SMT Chip Shooter
Lens High Precision Pick And Place Machine , Multi Functional SMT Chip Shooter

Large Image :  Lens High Precision Pick And Place Machine , Multi Functional SMT Chip Shooter

Product Details:

Place of Origin: CHINA
Brand Name: ETON
Certification: CE , ISO , CCC
Model Number: ET-E5S

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD 44000
Packaging Details: Vacuum wooden packing
Delivery Time: 15-30 days
Payment Terms: T/T
Supply Ability: 50 unit per mouth
Detailed Product Description
Number Of Heads: Number Of Heads 8 Alignment: Alignment Vision For The Flight Identification
Max Placement Rate: 40000CPH Max Tape Feeder Capacity: 30
PCB Length Width: Max:500*350mm Min:100*100mm Component Range: Smallest Size 0402 Max Height 36mm
High Light:

high speed led mounting machine

,

smt assembly machine

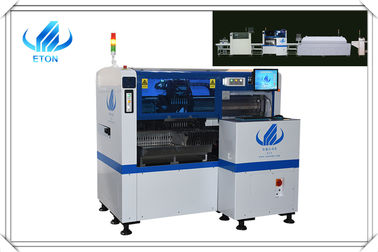

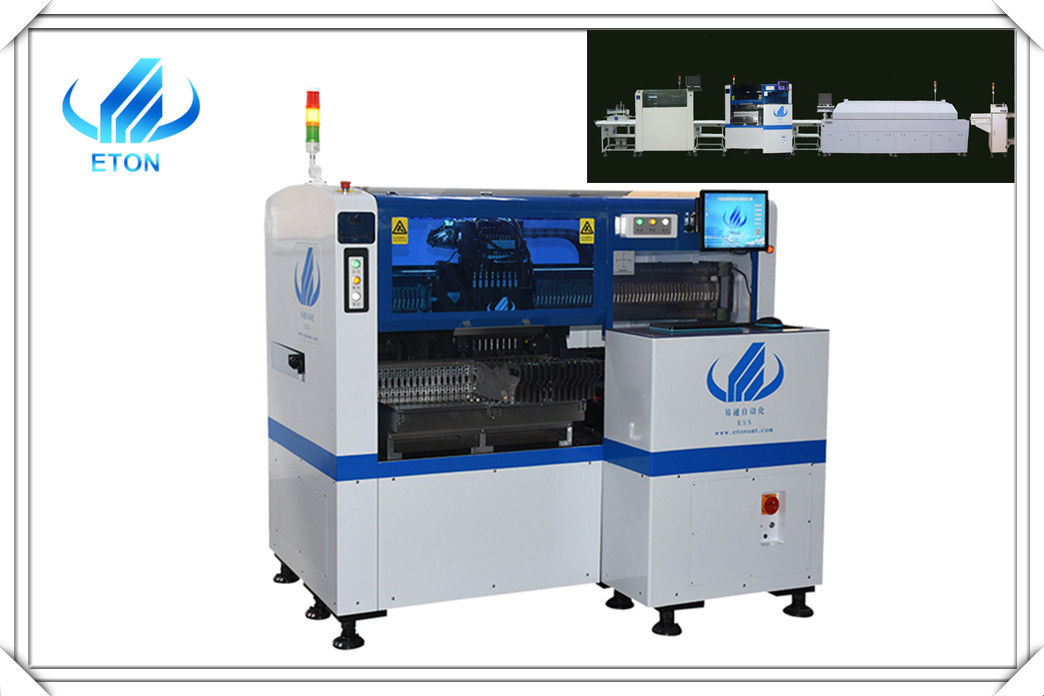

Single module magnetic linear motor multifunctional pick and place machine HT-E5S



Technical parameter:

Number of Heads 8
Alignment

Vision for the flight identification



Max Placement Rate 40000CPH
Max Tape Feeder Capacity 30
Mounting Precision

±0.02mm ,Vision alignment,

Mark vision

PCB Length Width Max:500*350mm Min:100*100mm
Component Range Smallest Size 0402
  Max Height 36mm



Exclusive patented technology:

1. Electronic feeder feeding system

2. Vision alignment flight identification,Mark correction

3. Non-stop material re-loading function

4. Auto-optimization after coordinates generated,etc



Our services

Before buying machine

1.Professional sales manager of LED SMT machine, provide professional suggestion

and service to you !

2.24 hours online service and technical support, solve your questions quickly!

3.Sound company organization and working system, guarantee you a fast delivery!

4.Design and provide the whole SMT processing lines for you based on your budget ,

workshop covering area with best prices!

After buying machine

1.1 year free warranty

2.Visit customers regularly and gather information.

3.Provide latest information about technology and equipment.
