Product Details:
Payment & Shipping Terms:
|
Application:: | Flexible Soft PCB Assembly Machine Smt Mounting Production Machine For 5m 50m 100m Strip | Applicable Components:: | LED Chip,capacitors,resistors Etc. |
---|---|---|---|
NO. Of Head:: | 34 PCS | Capacity Speed:: | 100000~150000CPH |
PCB Size:: | 250mm*any Length | Repeat Precision:: | ±0.02mm |
Apply To:: | (SMT Machine)PCB,Hard Light Board Or Soft Lamp Strip,etc. | Feeder Type:: | Electronic Feeder(double Motor,more Precision) |
Name:: | Smt Pick And Place Machine/led Pick And Place Machine/led Chip Mounter | No. Of Feeder:: | 68 PCS |
Highlight: | led pick and place machine,led assembly machine |
1. Features:
This machine can produce 1m, 5m, 50m, 100m, 500m any length of LED soft flexible lamp strip etc.
Producing with 2~4 types of materials with high capacity,avaible for 5m, 50m or any length of soft lamp strip continously.
Correction automatically, high precision, available for RGB
Global first technology patent: counterfeiting not allowed
Speed: 100000~ 150000CPH
2. Machine Warranty:
Warranty:
The complete machine has a warranty period of 1 year from the time of purchase and lifelong service
support as well as a long term factory price supply.
We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
Each machine 100% test well before ship out.
3. Technical Parameter:
Model | SMT chip mounter HT-T7 | |
Machine Style | Double model with 8 heads | |
Alignment | flight Vision | |
Placement Rate | Vision:100,000CPH(Optimum) | |
Feeder Capacity | Tape feeder:8mm,12mm,16mm,24mm is avaible | |
Component Range |
Smallest Size | 0402 |
Largest Size | 30mm (Pitch 0.2mm) | |
Max Height | 3mm | |
Rotation | ±360° | |
Placement Accuracy | ± 0.02mm(repeat placement accuracy | |
X-Y Repeatability | ±0.02mm | |
Board Dimension(mm) | Maximum | 250mm* any length 1m 5m 50m 100m 500m |
Main Control board | R&D by ETON | |
Electricity Supply | 220V | |
Power | 5KW | |
Weight | 1600KG |

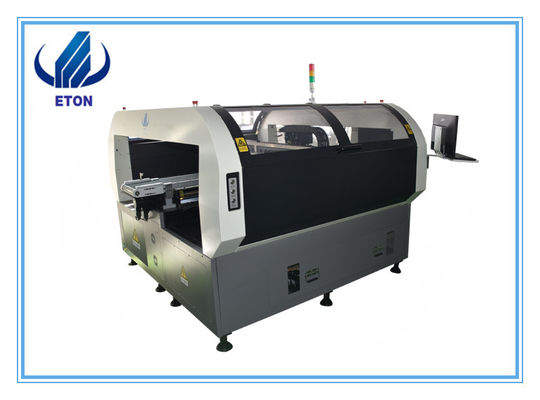

4. Product Image:
