Product Details:
Payment & Shipping Terms:
|
Application:: | Smt Machine Production Line | Applicable Materials:: | Solder Paste,red Glue Etc. |
---|---|---|---|
Printing Area:: | 600×250 Mm | Plate Area:: | 600*300mm |
Stencil Frame Size:: | 470×370 Mm~600×550 Mm (L×W) | Positioning Way:: | Positioning Pin |
Apply To:: | (SMT Machine)PCB,Hard Light Board Or Soft Lamp Strip,etc. | Scraper Speed:: | 0-100 Mm/second |

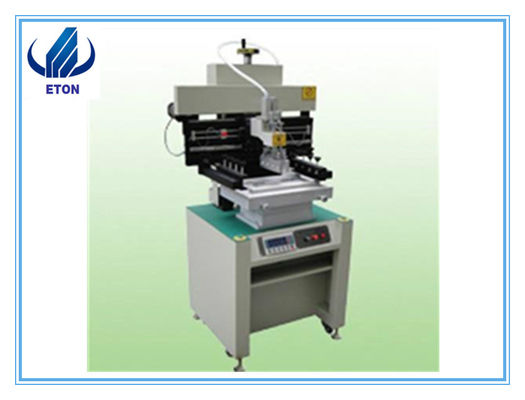

Name:: | Smt Semi-auto Stencil Printer,semi Automatic Printer,smt Machine | ||
Highlight: | semi auto screen printer,solder paste stencil printer |
1. Features:
(1) the governor motor drive scraper, combining precision linear guide, ensure the printing precision;
(2) printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;
(3) the scraper holder can adjust forward and backward, to select the suitable printing position;
(4) combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
(5) steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
(6) can be set unidirectional and bidirectional multiple printing methods.
2. Technical Parameter:
Dimension | 1400mm(L)/800mm(W)/1680mm(H) |
Printing area | 550mm*250mm(L*W) |
PCB Plate thickness | 0~50mm |
Mounting Precision | ±0.01mm |
Plate trimming | Front/back +/- 10mm Right/Left +/- 10mm |
Power Comsumption | 120W/220AC 50HZ |
Air Force | 0.5~0.7mpa |
Weight | 200KG |
Scraper Speed | 0~100mm/second |
3. Company Information
Company Profile:
The Global Largest Production Capacity Supplier of LED Production Line
Professional Efficient Technology Development Innovation
Company Five Level Management Policy: sincere business,focus on
R&D,manufacture by heart,considerate service, customer trust.
Eton Purpose: To create value for customers, creating benefits for society.
Eton Mission: Professional,Excellent technology,Share the results.
4. Packaging & Shipping
Package: Standard export package(Package as per customer's requirement)
Shipping: Shenzhen port within 15 days after payment
5. Our Services
Excellent After-sale Service.
Upgrade the software will be free for whole lifetime of machine.
Visit customer regularly and gather information.
