Product Details:
Payment & Shipping Terms:
|
Application:: | Semi-auto Led Smt Solder Paste Printer Solder Stencil Printer Screen Printer Leader Manufacture SMT Semi-auto PCB Screen | Applicable Materials:: | Solder Paste,red Glue Etc. |
---|---|---|---|
Printing Area:: | 1200×250 Mm | Plate Area:: | 1250*300mm |
Stencil Frame Size:: | 470×370 Mm~1300×550 Mm (L×W) | Positioning Way:: | Positioning Pin |
Apply To:: | (SMT Machine)PCB,Hard Light Board Or Soft Lamp Strip,etc. | Scraper Speed:: | 0-100 Mm/second |
Name:: | Smt Semi-auto Stencil Printer,semi Automatic Printer,smt Machine | ||
Highlight: | semi auto screen printer,solder paste stencil printer |
1.Features:
Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
Block can be adjusted before and after the blade, to choose the right printing position.
Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
2.Product Specification:
Model | S1200 |
Dimensions | 2000×720×1650mm |
Platform size | 300×1250mm |
PCB size | 250×1200mm |
Printing speed | 0-8000mm/min |
PCB thickness | 0.2-2.0mm |
PCB fine tuning range | Front/side±10mm |
Power supply | 1PAC220V 50/60HZ |
Platform height | 850±20mm |
Repeating precision | ±0.01mm |
Printing Accuracy | ±0.02mm |
Positioning mode | Outside/Reference hole |
Weight | Approx.380Kg |
3.Product Specification:
Model | Semi-auto screen printer s1200 |
PLC S7-200 | SIEMENS Germany |
Proximity switch (left and right) TL-W5MC1 | OMRON Japan |
Proximity switch (top and bottom) D-AIS4C | AirTAC Taiwan |
Magnetic Value 201-10 | AirTAC Taiwan |
cylinder | Festo Germany |
Power supply | OMRON Japan |
Touch Screen | Samkoon |
Linder side | Hiwin Taiwan |
Relay | OMRON Japan |
4. FRQ:
Why us?
ETON is the leading SMT factory solution provider in China, offering professional SMT factory building advice and service more than 10 years experience.
Our products have won a good reputation all over the world, We’re sincerely looking forward to serving you in the nearest future.
What is your delivery date?
The delivery date is about 4 weeks after receipt of payment.
What is your payment terms?
30% deposit in advance and 70% balance before shipment.

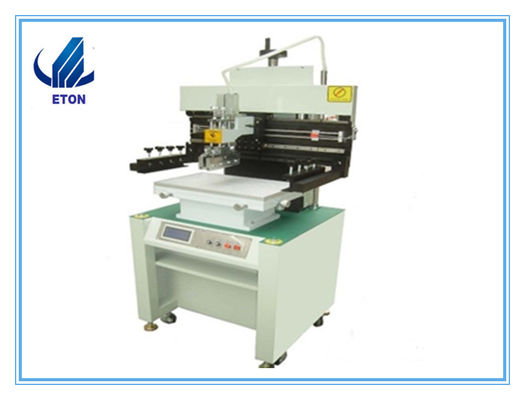

5. Product image
