Product Details:
Payment & Shipping Terms:
|
| Application:: | High Speed Semi-auto Solder Paste Printer For Pcb Printing Machine Semi-Auto Solder Paste Screen Printer | Applicable Materials:: | Solder Paste,red Glue Etc. |
|---|---|---|---|
| Printing Area:: | 600×250 Mm | Plate Area：: | 600*300mm |
| Stencil Frame Size：: | 470×370 Mm～600×550 Mm (L×W) | Positioning Way:: | Positioning Pin |
| Apply To:: | (SMT Machine)PCB,Hard Light Board Or Soft Lamp Strip,etc. | Scraper Speed：: | 0-100 Mm/second |
| Name:: | Smt Semi-auto Stencil Printer,semi Automatic Printer,smt Machine | ||
| Highlight: | semi auto screen printer,solder paste screen printer |
||
(1) the scraper holder can adjust forward and backward, to select the suitable printing position;
(2) combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
(3) steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
(4) can be set unidirectional and bidirectional multiple printing methods.
2.Technical Parameter:
| Dimension | 1400mm(L)/800mm(W)/1680mm(H) |
| Printing area | 550mm*250mm(L*W) |
| PCB Plate thickness | 0~50mm |
| Mounting Precision | ±0.01mm |
| Plate trimming | Front/back +/- 10mm Right/Left +/- 10mm |
| Power Comsumption | 120W/220AC 50HZ |
| Air Force | 0.5~0.7mpa |
| Weight | 200KG |
| Scraper Speed | 0~100mm/second |

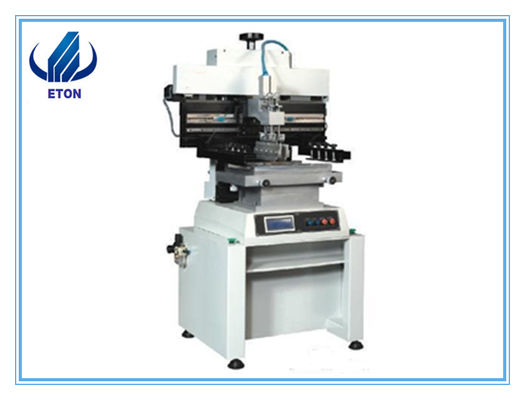

3.Product Image:
4.Packaging & Shipping
Package : Standard export package (Package as per customer's requirement )
The normal package is vacuum wooden box.If container is too tigher ,we will use PE film for packing or pack it according to customers special request .
Shipping : Shenzhen port within 4 weeks after payment
5.Our Services
Excellent Service :
* Inquiry and consulting support.
* Sample machine testing support
* View our Factory
* Training how to instal the machine, training how to use the machine
* Engineers available to service machinery overseas
6.Patents Certifications:
All of our machines have passed CE ,ISO9001 ,CCC ,SIRA and have own the global first technology patent .
Our company have entered markets in USA ,KOREA ,CERMANY ,INDIA ,EGYPT ,BRAZIL ,VIETNAM ,TUNISIA ,ASIAN MARKET ,and have established good cooperation with clients there .
