Full Solution Smt Reflow Oven Production Line Pick And Place Machine

Full Solution Smt Reflow Oven Production Line Pick And Place Machine
Full Solution Smt Reflow Oven Production Line Pick And Place Machine Full Solution Smt Reflow Oven Production Line Pick And Place Machine Full Solution Smt Reflow Oven Production Line Pick And Place Machine

Large Image :  Full Solution Smt Reflow Oven Production Line Pick And Place Machine

Product Details:
Place of Origin: Shenzhen,China
Brand Name: ETON
Certification: CE,SIRA,CCC,ISO
Model Number: 8 zones
Payment & Shipping Terms:
Minimum Order Quantity: 1 UNIT
Price: USD12000~15000USD per Unit
Packaging Details: Standard export wooden case package(Can do as customers' requirement)
Delivery Time: Within 15 days after receive the downpayment
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/P
Supply Ability: 30 UNIT per month
Detailed Product Description
Application:: Full Solution SMD And SMT Production Line Pick And Place Machine , Reflow Oven , Stencil Printer , Conveyors Mesh Speed: 0-1.8M/MIN
Temperature Accuracy: ±1℃ Heating Up Time: <25min
Apply Solder Paste Type: Lead-free Solder/Ordinary Solder Applicable Components Type: BGA,CSP Etc.single/double Sided
Power Comsumption: 120W/220AC 50HZ
High Light:

smt reflow soldering

,

reflow soldering machine


Product Description:

SMT LED machine,SMT LED pick and place machine,LED light production machine,LED light assembly machine



1.Features:





■ Windows operation interface, designed two kinds of control mode, computer control and emergency manual control,have the functions of security.



■ Adopting heating mode of the world top German technology, high heat transfer rate. The same temperature setting can reach more than 15% higher than the similar models of production capacity.The same capacity can be realized is lower than the similar machines of 15-20℃ further reduce the hot components on the PCB board and micro-damage.



■ Each temperature zone using forced circulation,independent PID control,upper and lower independent heating,the temperature of the furnace chamber accurate,uniform,large heat capacity.





Model REFLOW-X8
Dimensions 4800*1200*1450mm
Weight 1400kg
Number district heating 16
Heating zone length 3000mm
Number cooling zones 2
Exhaust volume requirements 25cubic/minute
Control Systems computer control
Power Requirements 3Ø380v
Starting power 45Kw
Normal power consumption 7Kw
Heating time 25minutes
Temperature control range Room temperature-350℃
Temperature control Temperature range of the independent PID temperature control
Temperature control accuracy ±1℃
PCB distribution deviation ±2℃
PCB maximum width 350mm
Parts height 25mm
Transport direction Left to right(right to left option)
Conveyor belt height 900±20mm
Transport speed 0-1800mm/min

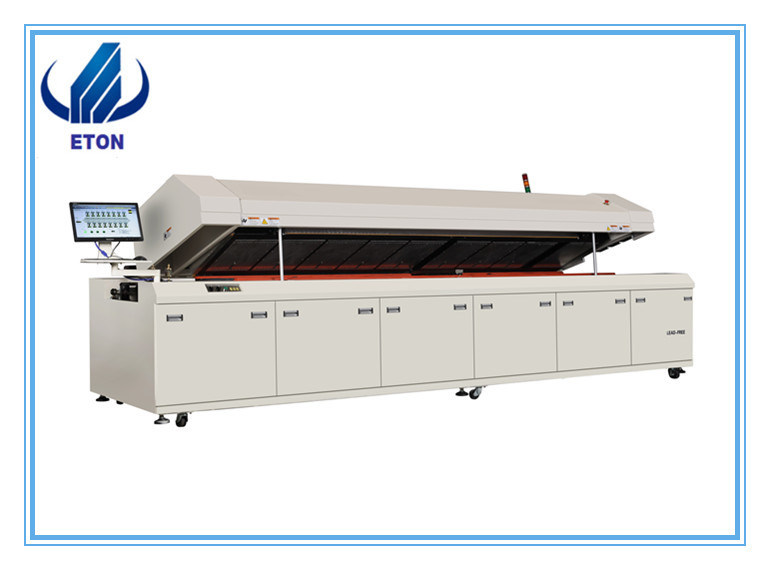

2. Machine image



Full Solution Smt Reflow Oven Production Line Pick And Place Machine 0



3.Our Services



Technical support



  1. From the date of purchase, two years of free repairs and maintenance;
  2. Providing technical updates and technical services at any time;
  3. The software system will be upgraded for a lifetime to ensure the latest and full features of the software version for free.
  4. Provide technical training service according to customer’s requirements.
  5. Can choose freely different feeding board ways and feeder bases.





Service Support



1.From the date of purchase, enjoy 24-hour service

2.make phone calls or on-site visits to customers non-scheduled , improve constantly according to the customer's requirements.

3.Guarantee to the expiration date, free to provide customers with Secure service
