Product Details:
Payment & Shipping Terms:
|

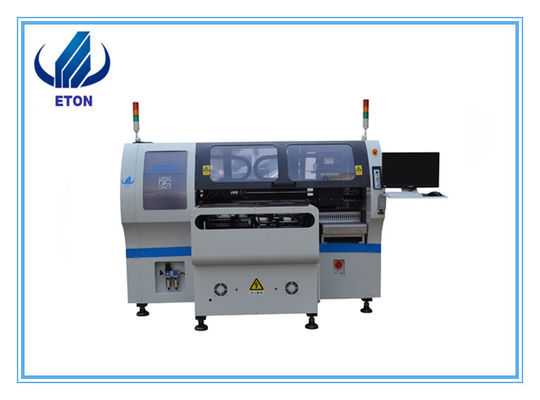

| Application:: | High Speed LED Mounting Machine High Performance SMD Pick And Place Machine 75000CPH 16 Heads Smd Machine | Applicable Components:: | LED Chip,IC,capacitors,resistors,shaped Components Etc. |
|---|---|---|---|
| NO. Of Head:: | 16 PCS | Capacity Speed:: | 72000CPH |
| PCB Size:: | Max:350*600mm Min:50*50mm | Repeat Precision:: | ±0.02mm |
| Apply To:: | LED Light Making,(SMT Machine)PCB,Hard Light Board Or Soft Lamp Strip,etc. | Feeder Type:: | Electronic Feeder(double Motor,more Precision) |
| Name:: | Smt Pick And Place Machine/led Pick And Place Machine/led Chip Mounter | No. Of Feeder:: | 34 PCS |
| High Light: | led pick and place machine,led assembly machine |
||
Product Description
1.Features:
1) Ultra-light Precision Mounting Head Assembly
8 suction nozzles could fall down to pick the component simultaneously.
The motion upward and downward of each nozzle is driven by fuji Servo motor, the acceleration is up to 4 times than that by Step motor.
Each suction nozzle is driven by separate rotate motor for exact angle and mounting accuracy.
Air filter device stops entries of micro component or impurity into electromagnetic valve for its normal running and long lifespan.
Vacuum detection device for component of each nozzle to indicate the successful suction without recognition camera
2) kuroda Ball Screw and fuji Servo Motor
kuroda High-precision Ball Screw for X and Y axis motion unit, which driven by fuji Servo motors with high power, super acceleration with stable moving speed for reliable and precision mounting.
3) High precision IC Mounting
2 sets of Flight Vision Recognition Camera is built in the machine, and 1 set of high-precision camera for the precision IC with line spacing of 0402, components available: SOP, QFP, QFN and BGA.
2 .Technical Parameter :
| Dimension | 1950mm(L)/2400mm(W)/1550mm(H) |
| PCB Length Width | Max. :350mm*600mm Min. :50mm*50mm(W*L) |
| PCB Thickness | 0.5~5mm |
| Mounting Precision | ±0.02mm |
| Components | LED chip,IC,capacitors,resistors,shaped components etc. |
| Power Comsumption | 8KW/220AC 50HZ |
| Air Force | 0.5mpa |
| System | Windows 7 |
| Mounting Speed | 65000CPH |
3 .Packaging & Shipping
Package : Standard export package (Package as per customer's requirement )
The normal package is vacuum wooden box.If container is too tigher ,we will use PE film for packing or pack it according to customers special request .
Shipping : Shenzhen port within 4 weeks after payment
4 .Our Services
Excellent Service :
* Inquiry and consulting support.
* Sample machine testing support
* View our Factory
* Training how to instal the machine, training how to use the machine
* Engineers available to service machinery overseas
