Product Details:
Payment & Shipping Terms:
|
| Application:: | LED Chip Mounter LED Pick And Place Machine Smt Mounting Machine Smd Led Strip Tube Panel Bulb Light Machine 8 Head | Applicable Components:: | LED Chip,IC,capacitors,resistors,shaped Components Etc. |
|---|---|---|---|
| NO. Of Head:: | 8 PCS | Capacity Speed:: | 35000CPH |
| PCB Size:: | Max:350*600mm Min:50*50mm | Repeat Precision:: | ±0.02mm |
| Apply To:: | LED Light Making,(SMT Machine)PCB,Hard Light Board Or Soft Lamp Strip,etc. | Feeder Type:: | Electronic Feeder(double Motor,more Precision) |
| Name:: | Smt Pick And Place Machine/led Pick And Place Machine/led Chip Mounter | No. Of Feeder:: | 17 PCS |
| High Light: | led pick and place machine,led lamp manufacturing machinery |
||
Product Description
1. Features:

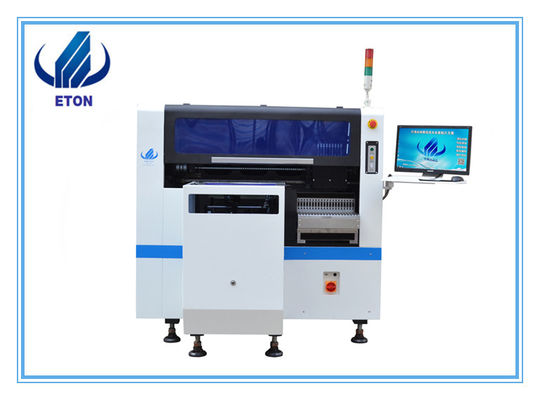

1. pick and place machine HT-E6T-600 eight-headed Pick up.
2. Two sets of high-speed flight cameras,1set of precision camera and set of Mark identification.
3. Computer Control.
4. Automatic Identification Of Mark Point.
5. Fuji servo motor in Japan.
6. Japanese KURODA ball screw.
7. Components Available: 0402,resistor,capacitor,IC,Shaped components etc.
8. Automatic transmission of PCB board.
9. Full English interface.
10. Professional remote video technical support.
2. FRQ :
Powerful software adopts numbers and images to display the program coordinate, easy and more convenient.
Software adopts data system, and store different types of PCB for convenient adjustment, just need to program one time for new products to use forever.
Platform: Y axis, X axis can be moved manually, speed adjustable, can achieve arbitrary point manual arrived, convenient programming.
LED Pick & Place Machine use imported vacuum detection system, it can check the suction accurately to prevent material leakage and throwing effectively.
Internal negative pressure system: low noise, long service life and vacuum pressure constant.
Standard setting:1 PC,6 mounting heads,18 nozzles.
Optional:8mm,12mm,16mm,and 24mm automatic feeder, different nozzles, industrial pump, air compressor .
3. Technical Parameter:
| Dimension | 1950mm(L)/2400mm(W)/1550mm(H) |
| PCB Length Width | Max.:350mm*600mm Min.:50mm*50mm(W*L) |
| PCB Thickness | 0.5~5mm |
| Mounting Precision | ±0.02mm |
| Components | LED chip,IC,capacitors,resistors,shaped components etc. |
| Power Comsumption | 4KW/220AC 50HZ |
| Air Force | 0.5mpa |
| System | Windows 7 |
| Mounting Speed | 35000CPH |
