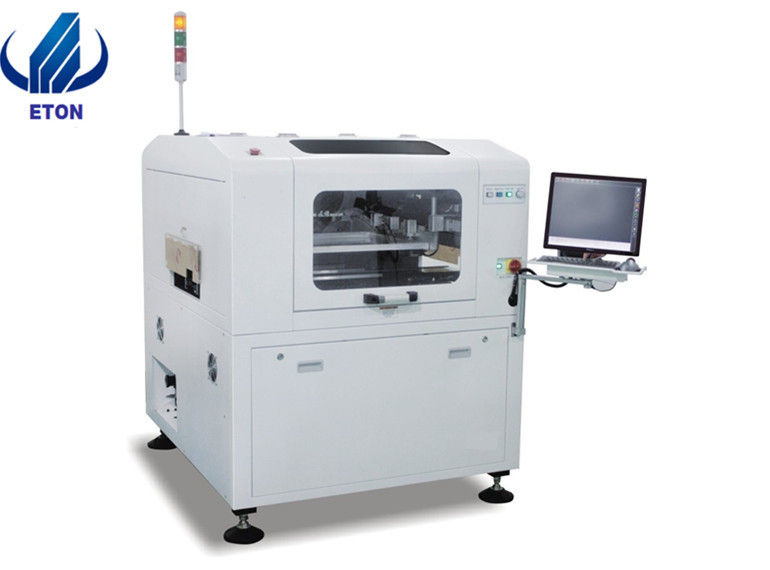

Application:: | Full Auto Circuit Stencil Screen Printing Machine Wholesale High Quality Screen Printting Machine SMT Printers | Applicable Materials:: | Solder Paste,red Glue Etc. |
---|---|---|---|
Printing Area:: | 1200×250 Mm | Plate Area:: | 1200*300mm |
Stencil Frame Size:: | 470×370 Mm~1200×550 Mm (L×W) | Positioning Way:: | Positioning Pin |
Apply To:: | (SMT Machine)PCB,Hard Light Board Or Soft Lamp Strip,etc. | Scraper Speed:: | 0-100 Mm/second |
Name:: | Smt Semi-auto Stencil Printer,semi Automatic Printer,smt Machine | ||
Highlight: | stencil printer machine,automatic screen printing machine |
1.New image recognition system-geometric match.
2.high-precision servo drive system.
3.PCB positioning system.
4.Many kinds of snap-off.
5.Torch special manual/automatic adjusted plate.
6.Smart stencil structure clamping.
7.Automatic and effective stencil cleaning.
8.Easy to maintain the electrical separate structure.
9.2D solder paste printing quality inspection and analysis.
10.Easy to use user-friendly Chinese/English operate interface.
HT-ET1500 Technical Parameter | ||
1 | Dimension | 2455mm(Length)*1400mm(Width)*1520mm(Height) |
2 | Total Weight | 1800KG |
3 | (X*Y)Maximum board size | 1500mm*500mm |
4 | (X*Y)Minimum board size | 80mm*50mm |
5 | Warpage | Max. PCB diagonal line 1% |
6 | PCB Thickness | 0.8-6mm |
7 | Maximum board weight | 12KG |
8 | Board margin gap | Configuration to 3.5mm |
9 | Maximum bottom gap | 20mm |
10 | Transmission speed | 1200mm/s(MAX) |
11 | Transmission height from the ground | 900±40mm |
12 | Transfer orbit direction | Left-Right,Right-Left,Left-Left,Right-Right |
13 | Transfer mode | One stage orbit |
14 | PCB clamping method | Programmable flexible side pressure,bottom integral suction cavity vacuum(Optinal:2 multipoint partial vacuum at the bottom) |
15 | Support method | Grid-Lok,magnetic thimble,equal high block,special workpiece fixture,grid-lok(optional) |
16 | Printing head | Suspended intelligent closed loop printing head(Linear motor) |
17 | Template frame size | 737mm*370mm~1800mm*737mm |
18 | Maximum printing area | 1500mm*500mm |
19 | Scraper type | Steel scraper/glue scraper(angle 45︒/55︒/60︒ matching the printing process |
20 | Scraper length | 220mm~520mm |
