Application:: | Full Auto Circuit Stencil Screen Printing Machine Wholesale High Quality Screen Printting Machine SMT Printers | Applicable Materials:: | Solder Paste,red Glue Etc. |
---|---|---|---|
Printing Area:: | 1200×250 Mm | Plate Area:: | 1200*300mm |
Stencil Frame Size:: | 470×370 Mm~1200×550 Mm (L×W) | Positioning Way:: | Positioning Pin |
Apply To:: | (SMT Machine)PCB,Hard Light Board Or Soft Lamp Strip,etc. | Scraper Speed:: | 0-100 Mm/second |
Name:: | Smt Semi-auto Stencil Printer,semi Automatic Printer,smt Machine | ||
Highlight: | solder paste printer,automatic screen printing machine |
1. Product Functions:
ET-1200 is a high accuracy extra dimension printing robot designed for high precision screen printing or stencil printing in SMT industry.
2. Product Features:

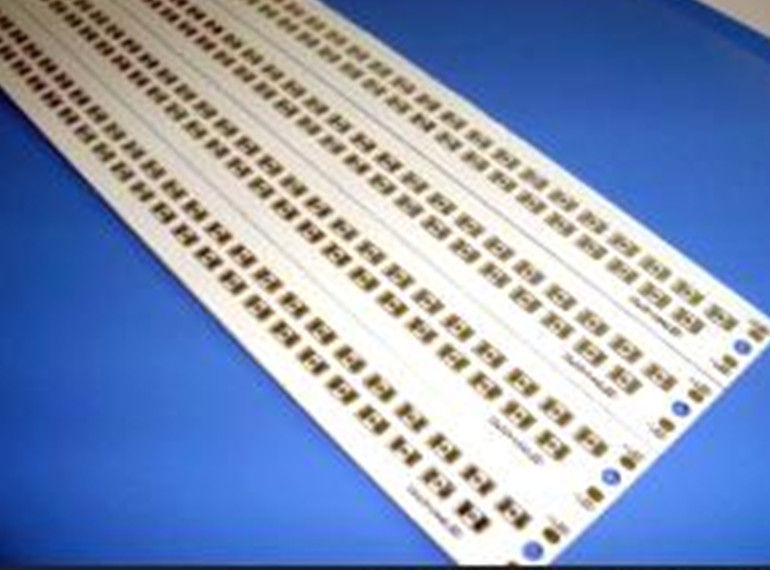

1. Wide compatibility for PCB dimensions from 100mm x 80mm to 850mm x 500mm and PCB thickness from 0.8mm to 6mm.
2. High printing resolution
1. High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm.
2. Support glue printing.
3. Automatic control improves production efficiency, quality control and saves production cost:
3. Automatic stencil positioning
4. Automatic PCB alignment
5. Automatic adjustment of squeegee pressure
6. Automatic printing
7. Automatic stencil cleaning (dry-type, wet-type and vacuum-type)
4. Adopt company independently developed suspended print head and programmable automatic pressure adjustment system with pressure closed-loop feedback. Support on-line real time pressure feedback and automatic squeegee pressure balancing. Accurate pressure control ensures perfect forming effect of solder paste.
HT-ET1500 Technical Parameter | ||
1 | Dimension | 2455mm(Length)*1400mm(Width)*1520mm(Height) |
2 | Total Weight | 1800KG |
3 | (X*Y)Maximum board size | 1500mm*500mm |
4 | (X*Y)Minimum board size | 80mm*50mm |
5 | Warpage | Max. PCB diagonal line 1% |
6 | PCB Thickness | 0.8-6mm |
7 | Maximum board weight | 12KG |
8 | Board margin gap | Configuration to 3.5mm |
9 | Maximum bottom gap | 20mm |
10 | Transmission speed | 1200mm/s(MAX) |
11 | Transmission height from the ground | 900±40mm |
12 | Transfer orbit direction | Left-Right,Right-Left,Left-Left,Right-Right |
13 | Transfer mode | One stage orbit |
14 | PCB clamping method | Programmable flexible side pressure,bottom integral suction cavity vacuum(Optinal:2 multipoint partial vacuum at the bottom) |
15 | Support method | Grid-Lok,magnetic thimble,equal high block,special workpiece fixture,grid-lok(optional) |
16 | Printing head | Suspended intelligent closed loop printing head(Linear motor) |
17 | Template frame size | 737mm*370mm~1800mm*737mm |
18 | Maximum printing area | 1500mm*500mm |
19 | Scraper type | Steel scraper/glue scraper(angle 45︒/55︒/60︒ matching the printing process |
20 | Scraper length | 220mm~520mm |
