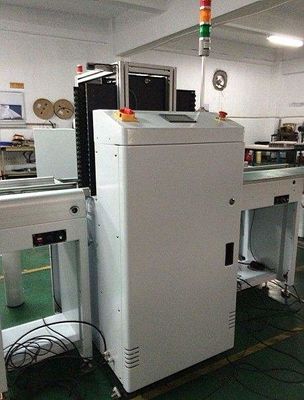

330 Buffer Machine For SMT Mounting Machine With Full load storage board is 50 PCS

330 Buffer Machine For SMT Mounting Machine  With  Full load storage board is  50 PCS
330 Buffer Machine For SMT Mounting Machine  With  Full load storage board is  50 PCS 330 Buffer Machine For SMT Mounting Machine  With  Full load storage board is  50 PCS 330 Buffer Machine For SMT Mounting Machine  With  Full load storage board is  50 PCS

Large Image :  330 Buffer Machine For SMT Mounting Machine With Full load storage board is 50 PCS

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE CCC ISO
Model Number: 330 buffer machine
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package(Wooden case with vacuum package)
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 50
Detailed Product Description
Dimension: L1200*W1450*H1200mm Control: Mitsubishi PLC
Power: 220 AC 50HZ PCB Height: 920±20mm
PCB Length Width: Max: (L)330*(W)450mm
Highlight:

smt pick and place machine

,

smt mounter machine

Model: 330 buffer



Features:

  1. Special aluminum profile guide rail and special thousand bird type plastic chain.
  2. 120W Taiwan brake motor drives ball screw to make Magazine stepping up and down.
  3. Pneumatic clamp structure
  4. Yadake for pneumatic components (the position of the push plate cylinder is adjusted by the screw)
  5. With cache pass-through receiving board to switch function switch





Technical parameter





Dimension L1200*W1450*H1200mm
Control Mitsubishi PLC
Power 220 AC 50HZ
Gas source 0.4-0.6MPa
OS Display Display control touch screen
PCB Length width Max: (L)330*(W)450mm
PCB height 920±20mm
Transmission Direction Single(left→right or right→left)
Storage boards Max: 20
Turnover box specifications (L)460*(W)400*(H)565mm
Full load storage board 50 PCS
Lifting platform pitch 10,20,30,40
Set of electric control box













About the quality:

Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Provide latest information about technology and equipment.

Visit customer regularly and gather information.



About packing  and  shipping

Packing  use  standard  export packing(wooden  case with cacuum packing)

Shipping  deliver in  shenzhen port   15  days  after  payment.







Our  Company





Shenzhen ETON  Automation  Equipment  Company  is  specializes in  LED mounter,  Now  we push   out  new products  in lines  of  SMT  around  machine. We  are  main  in the  field  of  SMT electronic equipment manufctures with a strong team innocvation and rigorous pursuit of quality management principles and  perfect after-sales service system is  bound to continue to create superior value to our customers.
