460 buffer machine for SMT

Name: 460 buffer machine for SMT
Brand: ETON
SKU: 460 buffer machine
Rating: 5 (103 reviews)

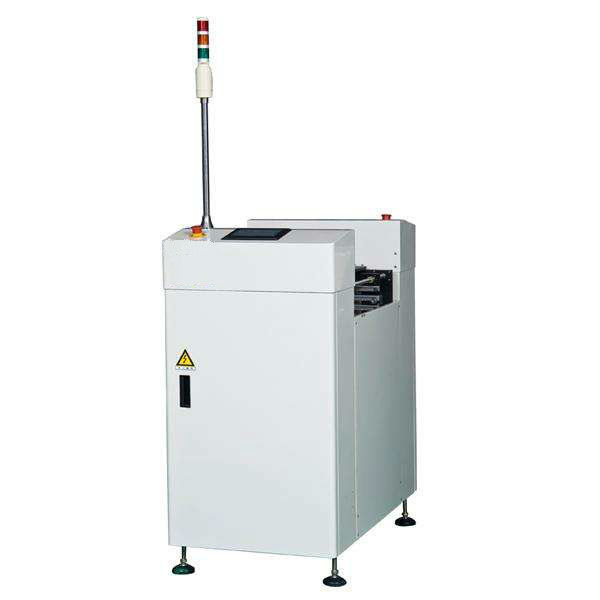

Large Image : 460 buffer machine for SMT

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE CCC ISO
Model Number:	460 buffer machine

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard export package(Wooden case with vacuum package)
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Dimension:	L1500W1750H1200mm	Control:	Mitsubishi PLC
Power:	220 AC 50HZ	PCB Height:	920±20mm
PCB Length Width:	Max: (L)525*(W)460mm
High Light:	smt pick and place machine , smt mounter machine

460 buffer machine

Features:

Special aluminum profile guide rail and special thousand bird type plastic chain.
120W Taiwan brake motor drives ball screw to make Magazine stepping up and down.
Pneumatic clamp structure
With automatic board function, can Separate good and bad boards
Yadake for pneumatic components (the position of the push plate cylinder is adjusted by the screw)
Change the storage state of each layer in the bin, that is, "NG" "OK" "None" can switch to each other.
The storage mode can be selected as “straight through” (only in the first layer of the bin), or “buffered” (each layer can be saved), or “NG” (into an NG board, alarm) mode.
When the PCB in the storage box is full, there are spare storage boxes that can be replaced with each other, and have a cooling function, which can take out the whole case of defective products at one time.

460 buffer machine for SMT 0

Technical parameter:

Dimension	L1500W1750H1200mm
Control	Mitsubishi PLC
Power	220 AC 50HZ
Gas source	0.4-0.6MPa
OS Display	Display control touch screen
PCB Length width	Max: (L)525*(W)460mm
PCB height	920±20mm
Transmission Direction	Single(left→right or right→left)
Storage boards	Max: 20
Turnover box specifications	(L)535(W)530(H)565mm
Full load storage board	50 PCS
Lifting platform pitch	10,20,30,40
Set of electric control box

460 buffer machine for SMT 1

About the quality:

Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.
