Product Details:
Payment & Shipping Terms:
|
| Colaor: | White | Name: | Send Board Machine |
|---|---|---|---|
| Dimension: | L1100*W1500*H1270mm | Power Supply: | 220V 50HZ |
| High Light: | smt pick and place machine,smt pick and place equipment |
||

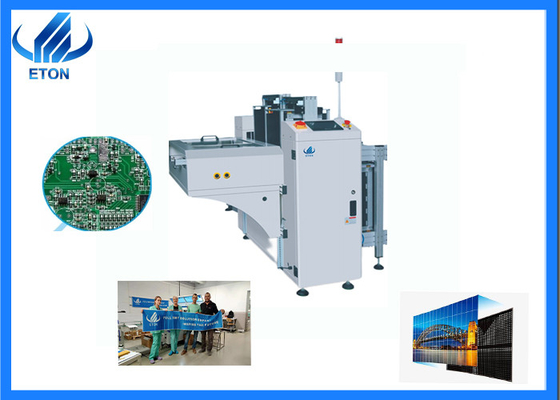

LED bulb light Double track send board machine specialized for pcb
2: Technical parameters
| Item | Double track send board machine |
| Dimension | L1100*W1500*H1270mm |
| Frame | Special national standard aluminum profile guide rail and special thousand bird type plastic chain |
| Lift | 90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down |
| Structure | Yadak pneumatic clamp |

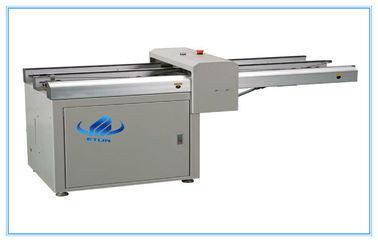

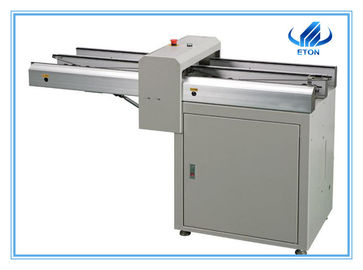

| 0.6M long push plate Conveyor | 1 set |
| Magazine Specifications | (W)320*(L)355*(H)570mm |
| Maximum size of PCB | L330*W250 |
| Direction | Left to right (the orbital distance is specified by the customer and cannot be changed after the specification) |
| Lift platform pitch selection | 10,20,30,40, 50 |
| Operation control panel | Taiwanese joint venture display control touch screen |
| power supply | Single phase 220V 50HZ |
| Gas source | 0.4-0.6MPa |
| Electric control box | 1 set |
FAQ
1) Do you have oversea after sale service?
We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
2) How is the training?
After buying our machines, you can send your engineers to our factory, or we send our engineer to your factory, and then we will train your people to operate these machines.
3) It’s hard to use the machine?
No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
4) Does your machines have quality certificates?
We are high-tech enterprise with CE,SIRA,CCC ,ISO awarded as "Well-know brand" and many technology patents, and have rich experience(more than 8 years) in LED light production line program.
5) What’s the termsof payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.
Let’s light up your business!
We are very experienced in the establishment of led production line. If you are interested in our products or want to enter the LED business, Please feel free to contact me.
