HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve

Name: HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve
Brand: ETON
SKU: HLX-LDBBU330
Rating: 4.8 (168 reviews)

Large Image : HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE CCC ISO
Model Number:	HLX-LDBBU330
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard export package(Wooden case with vacuum package)
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Dimenion:	L2000W860H1200±30mm	Magazine Specifications:	L460W400565mm
PCB Maximum Specification:	L450*W330	Lifting Platform Pitch:	10，20，30，40
Gas Source:	0.4-0.6MPa
Highlight:	smt mounter machine , smt pick and place equipment

HLX-LDBBU330 drop one machine

Model: HLX-LDBBU330

Features:

Special aluminum profile guide rail and special thousand bird type plastic chain.
90W Taiwan brake motor drive uses ball screw to make Magazine stepping up and down.
The box transmission motor adopts 15W fixed speed motor.
Pneumatic components (the position of the push plate cylinder is adjusted with the screw)
The falling plate action parts are made of aluminum alloy

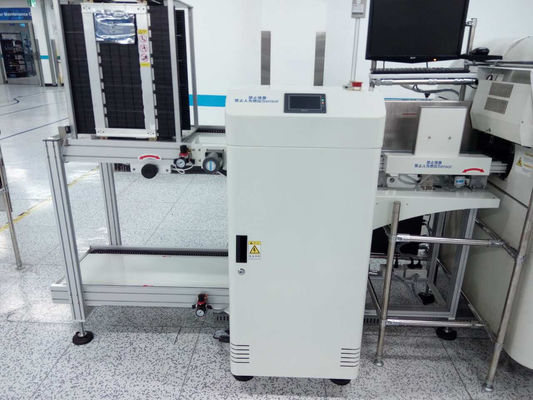

HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve 0

Technical parameter:

Dimension	L2000W860H1200±30mm
Transmission motor	15W fixed speed motor
Magazine Specifications	L460W400565mm
PCB maximum specification	L450*W330
Transmission Direction	Single(left→right or right→left)
Lifting platform pitch	10,20,30,40
Transmission height	H=920±30
Control	Mitsubishi PLC programmable controller control
Drop board conveyor	Stepper motor
Falling board	Cylinder + solenoid valve
Conveyor belt	7mm flat belt
Operation control panel	Display control true color touch screen
Power	220V 50HZ
Gas source	0.4-0.6MPa
Full load plate number	Sending machine 50PCS stacking machine stacking 100MM high

Company Profile

HLX-LDBBU330 Drop One Machine For SMT Mounting Machine With Cylinder + solenoid valve 1

Shenzhen ETON is a LED mounter in this line about 12 years. With the trends of global green, energy-saving and requirements of production process, ETON did research and development cooperated with the experts from United States, Taiwan, Hong kong and multi-technical staff for four LED automatic High-speed placement machine products, which solves the problems of the long light board low capacity and higher labor costs, we also got many patents for invention by the sate.

About the quality:

Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.

shipping in shenzhen port 15 days after payment

packing : standard export packing. wooden case with vacuum packing.
