Automatic Flapper For Mounting Machine With Rail width 50-390 adjustable

Name: Automatic Flapper For Mounting Machine With Rail width 50-390 adjustable
Brand: ETON
SKU: ETON
Rating: 4.6 (104 reviews)

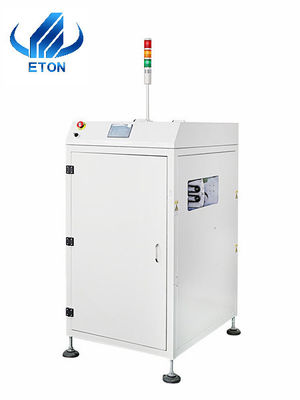

Large Image : Automatic Flapper For Mounting Machine With Rail width 50-390 adjustable

Product Details:

Place of Origin:	China
Brand Name:	ETON
Certification:	CE CCC ISO
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Packaging Details:	Standard export package(Wooden case with vacuum package)
Delivery Time:	30
Payment Terms:	T/T
Supply Ability:	50

Contact Now

Detailed Product Description

Dimenion:	L600㎜W840㎜H1400	Rail Height From The Ground:	910±20mm Adjustable
PCB Length Width:	L500XW390X&5	Total Weight:	2 Kg
PCB Board Transfer Speed:	0~4m/min
Highlight:	smt mounter machine , smt pick and place equipment

Automatic flapper

Features:

Used for SMT production on the light board circuit board function.
Should be flipped flexible, the guide rail can smoothly connect the PCB board with the upper and lower equipment.
Flip power driven by stepper motor.
Fully enclosed box shape, with sealing plate around, painted surface, computer white.
A set of electrical box

Automatic Flapper For Mounting Machine With Rail width 50-390 adjustable 0

Technical parameter:

Dimension	L600㎜W840㎜H1400
Rail height from the ground	910±20mm adjustable
Rail length	586
Rail width	50-390 adjustable
PCB Length Width	L500XW390X&5
Total weight	2 KG
PCB board transfer speed	0~4m/min
Belt	7mm flat belt
Control	Mitsubishi PLC control, display control touch screen operation panel
Transmission Direction	Single(left→right or right→left)
Power	220V AC/50HZ/2A
Gas source	0.4~0.6Mpa

About the quality:

One year warranty
Visit customers regularly to know the usage status and collect customers' opinions

Our company

Shenzhen ETON is a LED mounter in this line about 12 years. With the trends of global green, energy-saving and requirements of production process, ETON did research and development cooperated with the experts from United States, Taiwan, Hong kong and multi-technical staff for four LED automatic High-speed placement machine products.

Our shipping and packing

Shipping in shenzhen port 15 days after payment

Packing use standard export packing (wooden case with vacuum packing)

Quality Principle

Quality First, Client-oriented,

Continuous Improvement!
