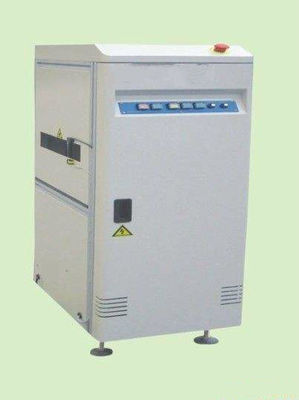

HLD-LCV460C automatic flapper For SMT Mounting Machine With Flip power driven by stepper motor

HLD-LCV460C automatic flapper For SMT Mounting Machine With Flip power driven by stepper motor
HLD-LCV460C automatic flapper For SMT Mounting Machine With Flip power driven by stepper motor HLD-LCV460C automatic flapper For SMT Mounting Machine With Flip power driven by stepper motor HLD-LCV460C automatic flapper For SMT Mounting Machine With Flip power driven by stepper motor

Large Image :  HLD-LCV460C automatic flapper For SMT Mounting Machine With Flip power driven by stepper motor

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE CCC ISO
Model Number: HLD-LCV460C
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Standard export package(Wooden case with vacuum package)
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 50
Contact Now
Detailed Product Description
Dimenion: L600㎜*W840㎜*H1400 Rail Height From The Ground: 910±20mm Adjustable
PCB Length Width: L500XW390X&5 Total Weight: 2 Kg
PCB Board Transfer Speed: 0~4m/min
Highlight:

smt pick and place machine

,

smt mounter machine

HLD-LCV460C automatic flapper

Model: HLD-LCV 460C

Features:

  1. Should be flipped flexible, the guide rail can smoothly connect the PCB board with the upper and lower equipment.
  2. Flip power driven by stepper motor.
  3. Fully enclosed box shape, with sealing plate around, painted surface, computer white.
  4. A set of electrical box, Chain transfer

HLD-LCV460C automatic flapper For SMT Mounting Machine With Flip power driven by stepper motor 0

Technical parameter:

Dimension L600㎜*W840㎜*H1400
Rail height from the ground 910±20mm adjustable
Rail length 586
Rail width 50-390 adjustable
PCB Length Width L500XW390X&5
Total weight 2 KG
PCB board transfer speed 0~4m/min
Control Panasonic PLC control, display control touch screen operation panel
Transmission Direction Single(left→right or right→left)
Power 220V AC/50HZ/2A
Gas source 0.4~0.6Mpa




Company profile

HLD-LCV460C automatic flapper For SMT Mounting Machine With Flip power driven by stepper motor 1

Shenzhen ETON With the trends of global green, energy-saving and requirements of production process, ETON did research and development cooperated with the experts from United States, Taiwan, Hong kong and multi-technical staff for four LED automatic High-speed placement machine products. which solves the problems of the long light board low capacity and higher labor costs, we also got many patents for invention by the sate.



About the quality:

Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.



shipping in shenzhen port 15 days after payment

packing : standard export packing. wooden case with vacuum packing.
