Product Details:
Payment & Shipping Terms:
|
Dimension: | 2700*2450*1530 Mm | Total Weight: | 1400 KG |
---|---|---|---|
PCB Length Width: | Max:330*1200 Mm | Mounting Speed: | 100000-150000 CPH |
Power SUPPLY: | 220 AC 50 HZ | ||
Highlight: | smt pick and place machine,smt mounter machine |
Technical Parameter

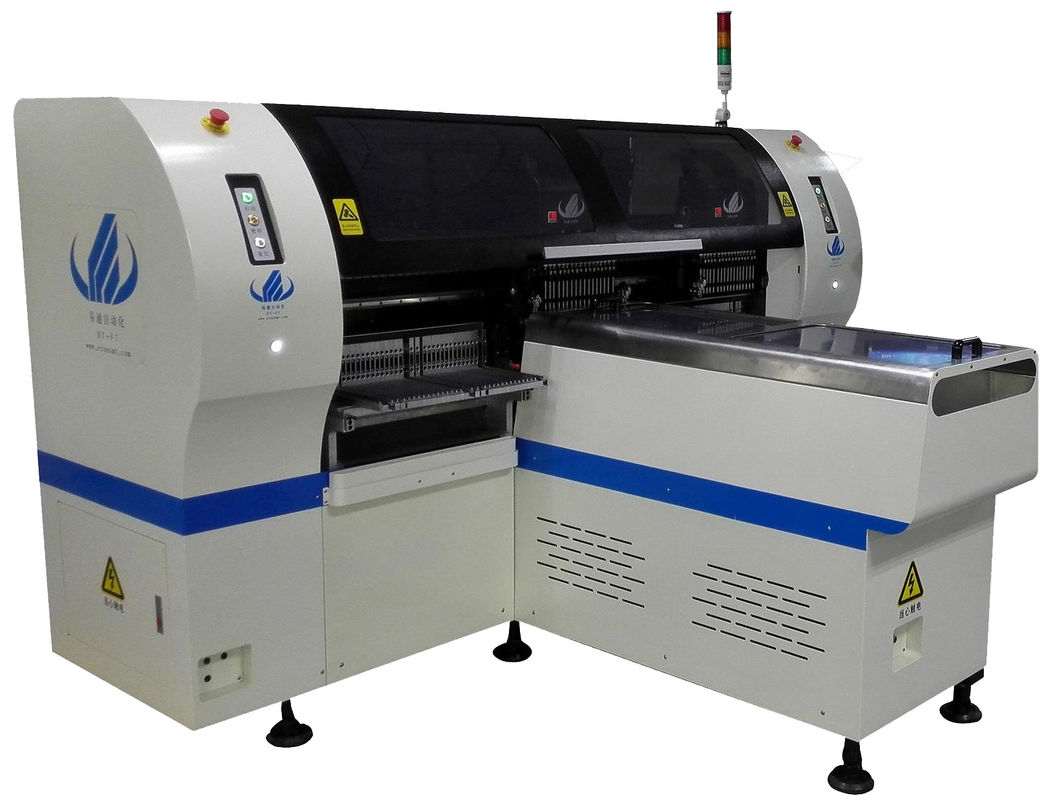

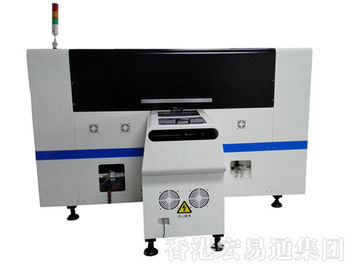

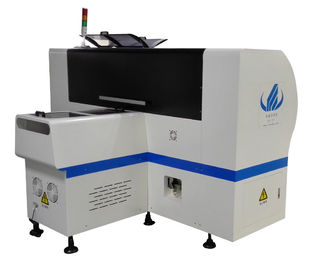

led bulb assembly machine/smt production line
PCB | PCB length width | Max:330*1200 mm Min:330*80 mm |
PCB thickness | 0.5~5mm | |
PCB Clamping | Adjustable pressure pneumatic. | |
Mounting Mode | Group to pick and group to mount | |
O.S. | system | Windows7 |
software | R&D independently | |
Display | LED Monitor | |
Input Device | Keyboard, Mouse | |
Feeding system | No. of feeders | 68 PCS |
No. of nozzles | 34 PCS | |
Feeder type | Electronic feeder | |
Vision System | No. of Camera | 5 sets of imported camera |
Vision for the flight identification + MARK correction | ||
Mounting Precision | ±0.02mm chip | |
Mounting Height | <15mm | |
Mounting Speed | 100000-150000CPH(optimum) | |
Components | LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers. | |
Components Space | 0.2mm | |
Power | 220AC 50HZ | |
Power Consumption | 5 kw | |
Operating Environment | 23℃±3 | |
Conveyor Transmission | Max Length:1200 mm | |
Transmission Speed | >500mm/sec | |
Transmission Direction | Single(left→right or right→left) | |
Transmission Mode | Online drive | |
Air pressure | >5.0kg/cm2 | |
Air consumption | <100 L/min | |
Electrical control | Independent research and development by ETON | |
Motion control card module 2 sets | Independent research and development by ETON | |
X,Y Axies Driving | Servo motor control for X, Y, Z axies. |
Apply to the 0.6M,0.9M,1.2M hard light board and 0.5M, 1M LED soft lamp strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor. Two mounting part, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Correction automatically, high precision, available for RGB
Global first technology patent: counterfeiting not allowed
IPC 9850 Capacity:150000-170000 CPH
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
Eton goal to create a national brand, build international Chinese enterprise.
Eton mission is professional, excellent technology, sharing the results.
Eton purpose to create value for customers, creating benefits for society.
Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
Visit customer regularly and gather information.
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Provide latest information about technology and equipment.
