Product Details:
Payment & Shipping Terms:
|
Dimension: | 1458*1226*1437 MM | Total Weight: | 1200 KG |
---|---|---|---|
PCB Length Width: | Max 500*350 MM | Mounting Speed: | 40000 CPH |
Power Supply: | 220 AC 50 HZ | ||
Highlight: | smt mounter machine,smt pick and place equipment |

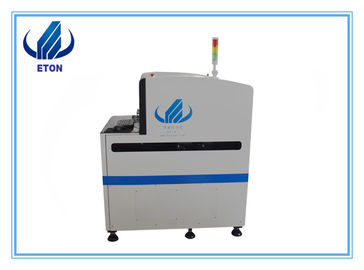

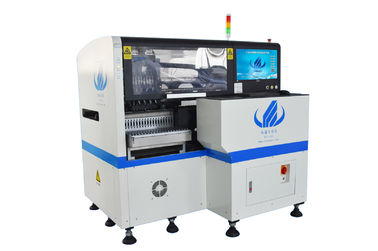

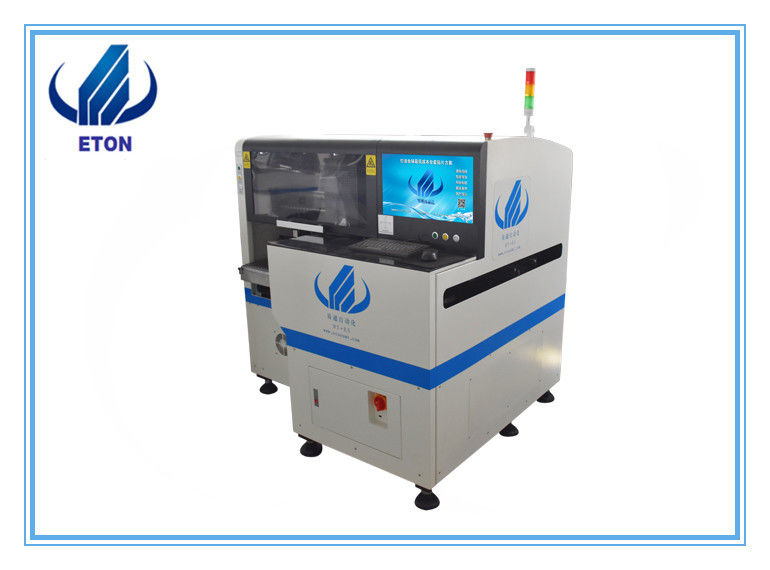

Multi-function LED path machine to create a new multi-purpose machine.
Mounting parts: LED,capacitors,resistors,ICshaped components,etc.
Multifunctional high speed module pick and place machine, can connect in serried and placing the same PCB on line.
IPC9850 Capacity: 40000 CPH
Exclusive patented technology:
Electronic feeder feeding system
Vision for the flight identification, Mark correction
Non-stop refueling capabilities
Auto-optimization feature after coordinated generated, etc.
led bulb assembly machine/smt production line
PCB | PCB length width | Max:500*350 mm Min:100*5 0mm |
PCB thickness | 0.5~3mm | |
PCB Clamping | Adjustable pressure pneumatic. | |
O.S. | system | Windows7 |
software | R&D independently | |
Display | LED Monitor | |
Input Device | Keyboard, Mouse | |
Feeding system | No. of feeders | 20PCS |
No. of nozzles | Single module, totally 8 | |
Feeder type | Electronic feeder |
Package: Standard export package(Wooden case with vacuum package)
Shipping: Shenzhen port within 15 days after payment
Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.
Provide latest information about technology and equipment.
HT-E5 multi-function module machine—5 units connected program..
Vision System | No. of Camera | 2 sets of imported camera |
Vision for the flight identification + MARK correction | ||
Mounting Precision | ±0.02mm chip | |
Mounting Height | <15mm | |
Mounting Speed | 40000CPH(optimum) | |
Components | LED, capacitors, resistors, shaped components, etc(Max:17mm Min:0402) | |
Components Space | 0.2mm | |
Power | 220AC 50HZ | |
Power Consumption | 4kw | |
Operating Environment | 23℃±3 | |
Conveyor Transmission | Max Length:500mm | |
Transmission Speed | >500mm/sec | |
Transmission Direction | Single(left→right or right→left) | |
Transmission Mode | Online drive | |
Air pressure | >5.0kg/cm2 | |
Electrical control | Independent research and development by ETON | |
Motion control card module 2 sets | Independent research and development by ETON | |
X,Y Axies Driving | Servo motor |
Our multi-function SMT machine adopts 8 suction nozzles in a total of single module, USES the technology of exclusive patent of electronic feeding system and applies to a variety of LED lamp products. Complete the use effect of multiple configurations of one machine
