| Dimension: | 3100*2400*1550 MM | PCB Length Width: | Max 1200*350 MM |
|---|---|---|---|
| Mounting Speed: | 60000 CPH | ||
| Highlight: | smt pick and place machine,smt mounter machine |
||

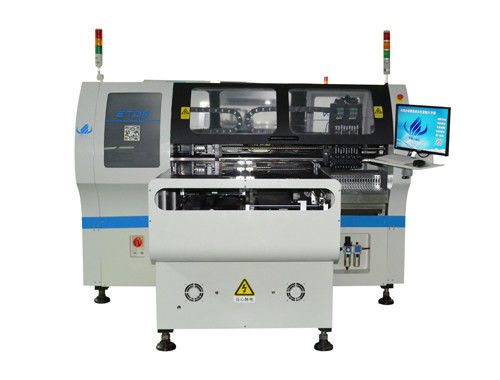

Our machine is a dual-system, dual-module multi-functional laminating machine, which can produce two different products at the same time. 16 suction nozzles of dual-module can be used to complete 60000 CPH efficiently.
Product features
Dual system, dual module multi-functional mounter.
Mounting components: LED,capacitors,resistors,IC,shaped components,etc.
Applicable to vibration feeding system for lens.
Exclusive patented technology:
Electronic feeder feeding system
Vision for the flight identification, Mark correction
Non-stop refueling capabilities
Auto-optimization feature after coordinated generated, etc.
Produce two different products at the same time.
| PCB | PCB length width | Max:1200*350 mm Min:50*5 0mm |
| PCB thickness | 0.5~5mm | |
| PCB Clamping | Adjustable pressure pneumatic. | |
| O.S. | system | Windows7 |
| software | R&D independently | |
| Display | LED Monitor | |
| Input Device | Keyboard, Mouse | |
| Feeding system | No. of feeders | 2*17PCS |
| No. of nozzles | Dual module, totally 16 | |
| Feeder type | Electronic feeder |
led bulb assembly machine/smt production line
| Vision System | No. of Camera | 4 sets of imported camera |
| Vision for the flight identification + MARK correction | ||
| Mounting Precision | ±0.02mm chip | |
| Mounting Height | <15mm | |
| Mounting Speed | 60000CPH(optimum) | |
| Components | LED, capacitors, resistors, shaped components, etc(Max:17mm Min:0603) | |
| Components Space | 0.2mm | |
| Power | 220AC 50HZ | |
| Power Consumption | 8 kw | |
| Operating Environment | 23℃±3 | |
| Conveyor Transmission | Max Length:500mm | |
| Transmission Speed | >500mm/sec | |
| Transmission Direction | Single(left→right or right→left) | |
| Transmission Mode | Online drive | |
| Air pressure | >5.0kg/cm2 | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 2 sets | Independent research and development by ETON | |
| X,Y Axies Driving | Servo motor |
Package: Standard export package(Wooden case with vacuum package)
Shipping: Shenzhen port within 15 days after payment
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
ETON 'ET','HT' series LED pick and place machine and multi-function pick and place machine products, the main models have been called the worls's highest capacity Mouner.
"Speed" and "Stability" has always been consistent ETON product qualities, ETON strong team innovation and rigorous pursuit of quality management principles and perfect after-sales service system is bound to continue to create superior value to our customers.
Q: What are your advantages?
Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Q : Is there any quality guarantee?
We stick to quality first, client-oriented, Continuous improvement!
Q: What is SMT Machine?
This is an LED lamp patch machine using surface mount technology.
Q: Whether the machine's after-sale service is guaranteed?
Each of our machines has a one-year warranty and will regularly visit customers for use.
