Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2700*1900*1530 Mm | Total Weight: | 1300 KG |
|---|---|---|---|
| PCB Thickness: | 0.5-5 Mm | Mounting Speed: | 150000-170000 CPH |
| Feeding Way: | Electronic Feeder | Air Consumption: | <100 L/ Min |
| High Light: | smd assembly machine,smd led mounting machine |
||
1. Product Description
Apply to the SMT machine, PCB, LED hard light board and LED soft lamp strip etc.
Apply to mounting LED 3014/3020/3528/5050/5730 etc.
Apply to tube, bulb, strip, lamp, panel, ceiling light, down light, diaplay etc.
Mounter speed: 150000~170000CPH
Technical Parameter

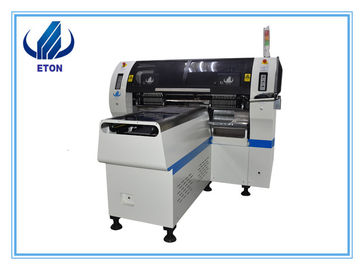

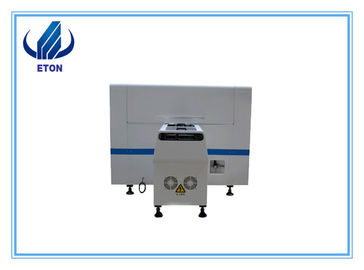

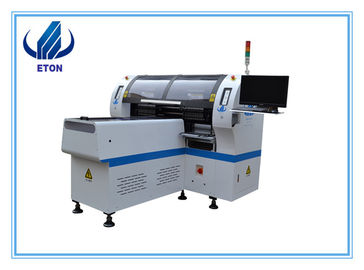

smt pick and place machine/led making machine
| Dimension | Length | 2700MM |
| Width | 1900MM | |
| Height | 1400MM | |
| Total Weight | 1300kg | |
| PCB | PCB length width | Max:300*1200mm Min:300*60mm |
| PCB thickness | 0.5~5mm | |
| PCB Clamping | Adjustable pressure pneumatic. | |
| O.S. | system | Windows7 |
| software | R&D independently | |
| Display | LED Monitor | |
| Input Device | Keyboard, Mouse | |
| Feeding system | No. of feeders | 34PCS |
| No. of nozzles | 34PCS | |
| Feeder type | Electronic feeder | |
| Vision System | No. of Camera | 5 sets of imported camera |
| Vision for the flight identification + MARK correction | ||
| Mounting Precision | ±0.02mm chip | |
| Mounting Height | <15mm | |
| Mounting Speed | 150000-170000 CPH(optimum) | |
| Components | LED 3014/3020/3528/5050/5730 etc. | |
| Components Space | 0.2mm | |
| Power | 220AC 50HZ | |
| Power Consumption | 5kw | |
| Operating Environment | 23℃±3 | |
| Conveyor Transmission | Max Length:1200mm | |
| Transmission Speed | >500mm/s | |
| Transmission Direction | Single(left→right or right→left) | |
| Transmission Mode | Online drive | |
| Air pressure | >5.0kg/cm2 | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 2 sets | Independent research and development by ETON | |
| X,Y Axies Driving | Servo motor |
2. Company Information
Company profile
Shenzhen Eton Automation Equipment Co.,Ltd is a national high-tech enterprise which specializes in automatic high-speed SMT pick and place machines for customers, combining R&D, production, sales and service as one
Company five level management policies: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
Our advantages
Date Analysis Compared with other Manufacturers
| Manufacturers/Parameter | Other company's F130 | Other company's 5M168 | Our Eton's HT-E8 mounter | Data Comparison |
| Speed | 15000CHP | 18000CHP |
80000CPH
|
4 to 6 times higher than others |
| Nozzle | 4PCS | 6PCS | 18PCS | 3 to 5 times higher than others |
| Precision | 0.03mm | 0.03mm | 0.02mm | More Precise |
| Patent | ------- | ------- | Technology Patents | Global First |
| Cost Performance | 20% | 30% | 100% | 3 to 5 times higher than others |
| Screw | Unknown brand | Unknown brand | Fuji | Japanese famous brand |
| motor | Unknown brand | Unknown brand | Kuroda | Japanese famous brand |
| camera | Unknown brand | Unknown brand | IDS | German famous brand |
