Technical Parameter

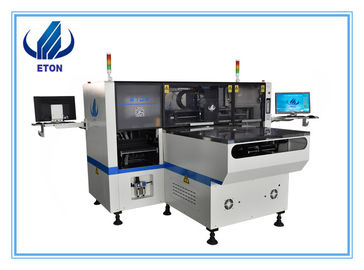

led bulb assembly machine/smt production line
| Dimension |
Length |
3100MM |
| Width |
2400MM |
| Height |
1550MM |
| Total Weight |
1800kg |
| PCB |
PCB length width |
Max:1200*350 mm Min:50*5 0mm |
| PCB thickness |
0.5~5mm |
| PCB Clamping |
Adjustable pressure pneumatic. |
| O.S. |
system |
Windows7 |
| software |
R&D independently |
| Display |
LED Monitor |
| Input Device |
Keyboard, Mouse |
| Feeding system |
No. of feeders |
2*17PCS |
| No. of nozzles |
Dual module, totally 16 |
| Feeder type |
Electronic feeder |
| Vision System |
No. of Camera |
4 sets of imported camera |
| |
Vision for the flight identification + MARK correction |
| Mounting Precision |
±0.02mm chip |
| Mounting Height |
<15mm |
| Mounting Speed |
60000CPH(optimum) |
| Components |
LED, capacitors, resistors, shaped components, etc(Max:17mm Min:0603) |
| Components Space |
0.2mm |
| Power |
220AC 50HZ |
| Power Consumption |
8 kw |
| Operating Environment |
23℃±3 |
| Conveyor Transmission |
Max Length:500mm |
| Transmission Speed |
>500mm/sec |
| Transmission Direction |
Single(left→right or right→left) |
| Transmission Mode |
Online drive |
| Air pressure |
>5.0kg/cm2 |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 2 sets |
Independent research and development by ETON |
| X,Y Axies Driving |
Servo motor |
Features
Double module multi-functional high speed mounter.
Dual system, dual module multi-functional mounter.
Mounting components: LED,capacitors,resistors,IC,shaped components,etc.
Applicable to vibration feeding system for lens.
Exclusive patented technology:
Electronic feeder feeding system
Vision for the flight identification, Mark correction
Non-stop refueling capabilities
Auto-optimization feature after coordinated generated, etc.
Produce two different products at the same time.
