Payment & Shipping Terms:
|Dimension:||2700*2450*1530 Mm||Total Weight:||1400 KG|
|PCB Length Width:||Max :330*1200 Mm||PCB Thickness:||0.5-5 Mm|
|Mounting Height:||<15 Mm||No.of Feeder Station:||68 PCS|
led bulb assembly machine/smt production line
|Total Weight||1400 kg|
|PCB||PCB length width||Max:330*1200 mm Min:330*80 mm|
|PCB Clamping||Adjustable pressure pneumatic.|
|Mounting Mode||Group to pick and group to mount|
|Input Device||Keyboard, Mouse|
|Feeding system||No. of feeders||68 PCS|
|No. of nozzles||34 PCS|
|Feeder type||Electronic feeder|
|Vision System||No. of Camera||5 sets of imported camera|
|Vision for the flight identification + MARK correction|
|Mounting Precision||±0.02mm chip|
|Components||LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.|
|Power Consumption||5 kw|
|Conveyor Transmission||Max Length:1200 mm|
|Transmission Direction||Single(left→right or right→left)|
|Transmission Mode||Online drive|
|Air consumption||<100 L/min|
|Electrical control||Independent research and development by ETON|
|Motion control card module 2 sets||Independent research and development by ETON|
|X,Y Axies Driving||Servo motor control for X, Y, Z axies.|
Shenzhen Eton Automation Equipment Co.,Ltd mainly takes professional, efficient and low consumption SMT full- automatic high-speed laminating machine as its responsibility, national high-speed technology enterprise integrating product development,production,sales and service.
Quality First, Client-oriented,

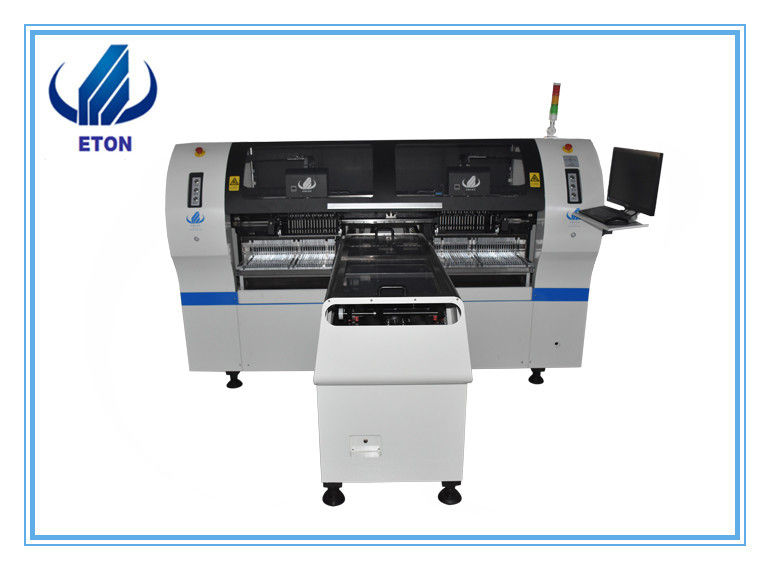

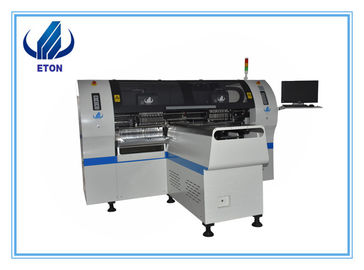

Double module professional high speed mounter
Apply to the 0.6M,0.9M,1.2M hard light board and 0.5M, 1M LED soft lamp strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor. Two mounting part, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Correction automatically, high precision, available for RGB
Global first technology patent: counterfeiting not allowed
IPC 9850 Capacity:150000-170000 CPH
Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0
ZL 2012 2 0178869.1 ZL 2012 2 0415505.0
ZL 2012 2 0415044.7 ZL 2012 2 0415356.8
ZL 2012 2 0415061.0
We use standard export packing(wooden case with vacuum packing)and deliver the goods at ShenZhen port 15days after payment.
Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)
Upgrade the software will be free
Visit customer regularly and gather information.
Provide latest information about technology and equipment.
Many high speed mounter—one reflow oven.
Q:What are the main LED products do our machines for?
There are different machines in our company, and different machines apply to different LED lights and components. The main products we can apply: bulb, tube, strip, lamp, panel. Down light, streetlight, ceiling light. wall washer light, power, driver, lens and so on.
Q: Why choose us ?
We adopt professional, high efficiency, low consumption and specialized in research and development, production, sales and service of SMT high-speed SMT machine automation.
Q: What is your delivery date?
The delivery date is about 15 days after receipt of payment.
Q: What's the credibility of your brand?
Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
If you are interested in our products, please feel free to contact me and I will be happy to answer any questions you have!
