220 AC 50 HZ Smd Led Mounting Machine High Capacity 2-4 Materials Long Lifespan

220 AC 50 HZ Smd Led Mounting Machine High Capacity 2-4 Materials Long Lifespan
220 AC 50 HZ Smd Led Mounting Machine High Capacity 2-4 Materials Long Lifespan

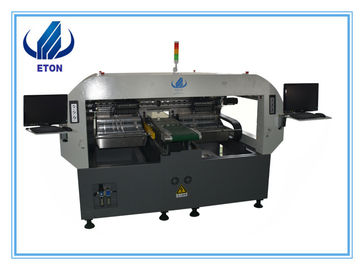

Large Image :  220 AC 50 HZ Smd Led Mounting Machine High Capacity 2-4 Materials Long Lifespan

Product Details:

Place of Origin: China
Brand Name: ETON
Certification: CE CCC ISO
Model Number: HT-T7

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: US $85000 - 86000 / Unit
Packaging Details: Standard export package(Wooden case with vacuum package)
Delivery Time: 30
Payment Terms: T/T
Supply Ability: 50
Detailed Product Description
Dimension: 2200*2850*1550 MM Total Weight: 1600 KG
Wire Plate Size: Max 250 MM* Any Length Mounting Speed: 100000 - 150000 CPH
Power: 220 AC 50 HZ No.of Nozzles: 30 PCS
High Light:

smd assembly machine

,

smd pick and place machine





specialty

Producing with 2-4 types of materials with high capacity, avaible for 5M, 50M or any length of soft lamp strip continuously. Two model, 15 nozzles for each mounting part, part A or part B can be mounted separately or synchronously. Global first technology patent: counterfeiting not allowed.

IPC 9850 Capacity:100000-150000 CPH

Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0

ZL 2012 2 0178869.1 ZL 2012 2 0415505.0

ZL 2012 2 0415044.7 ZL 2012 2 0415356.8

ZL 2012 2 0415061.0

Packing & Shipping

220 AC 50 HZ Smd Led Mounting Machine High Capacity 2-4 Materials Long Lifespan 0

Package used Standard export package(Wooden case with vacuum package)

Shipping in Shenzhen port within 15 days after payment

LED mounter HT-T7 with double module. 15 nozzles for each module, part A or part B work separately or synchronously. The minimum pith of nozzle is 14 MM, the nozzles can be adjusted freely if the width of each array is belt for transmission PCB, vision alignment for each meter, Mark correction, mounting continually for any length of strip, this is the Gloal only one SMT solution for mounting automatically of 5M, 50M etc. flexible strip.

Technical Parameter

led bulb assembly machine/smt production line

Soft lamp strip Wire plate size 250MM* any length
Wire plate thickness 0.5~5mm
Wire plate clamping Adjustable pressure pneumatic.
  Mounting Mode Group to pick and group to mount
O.S. system Windows7
software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
Feeding system No. of feeders 60 PCS
No. of nozzles 30 PCS
Feeder type Electronic feeder
Vision System No. of Camera 5 sets of imported camera
  Vision for the flight identification + MARK correction
Mounting Precision ±0.02mm chip
Mounting Height <15mm
Mounting Speed 100000-150000CPH(optimum)
Components LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
Components Space 0.2mm
Power 220AC 50HZ
Power Consumption 5 kw
Operating Environment 23℃±3
Conveyor Transmission Belt drive
Transmission Speed >500mm/sec
Transmission Direction Single(left→right or right→left)
Transmission Mode Online drive
Air pressure >5.0kg/cm2
Electrical control Independent research and development by ETON
Motion control card module 2 sets Independent research and development by ETON
X,Y Axies Driving Servo motor for closed-loop feedback control for X,Y axies





About the quality:

Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.
