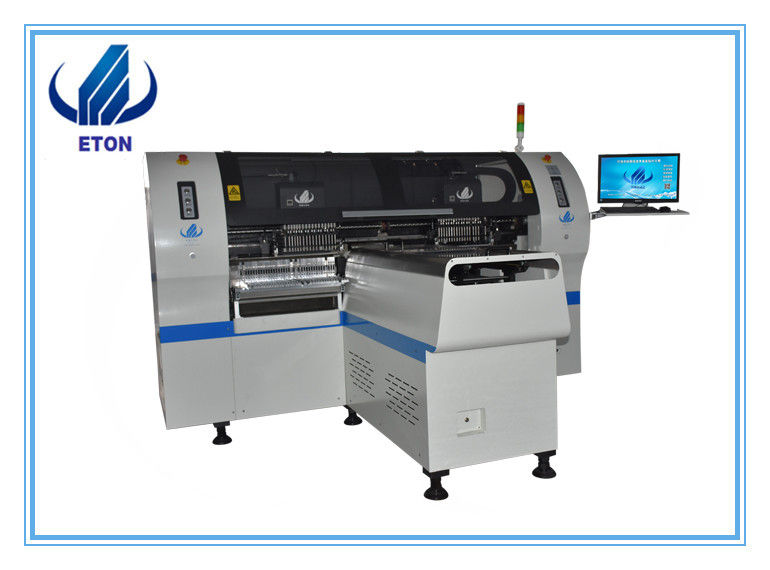

Long Lifespan SMD Mounting Machine HT-F7 Mounting Mode Group To Pick / Mount

Long Lifespan SMD Mounting Machine HT-F7 Mounting Mode Group To Pick / Mount
Long Lifespan SMD Mounting Machine HT-F7 Mounting Mode Group To Pick / Mount

Large Image :  Long Lifespan SMD Mounting Machine HT-F7 Mounting Mode Group To Pick / Mount

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE CCC ISO
Model Number: HT-F7
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $85,000-86,000 / Units
Packaging Details: Standard export package(Wooden case with vacuum package)
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 50
Detailed Product Description
Dimension: 2700*2450*1530 Mm Total Weight: 1400 KG
PCB Length Width: Max :330*1200 Mm PCB Thickness: 0.5-5 Mm
Mounting Height: <15 Mm No.of Feeder Station: 68 PCS
High Light:

smd pick and place machine

,

smd led mounting machine

F7: Mounting Module Speed Capacity Reach 150000 CPH For LED Mounting Machine

Product Description

F7: Mounting Module Speed Capacity Reach 150000 CPH For LED Mounting Machine



Features

Double module professional high speed mounter

Long Lifespan SMD Mounting Machine HT-F7 Mounting Mode Group To Pick / Mount 0

Apply to the 0.6M,0.9M,1.2M hard light board and 0.5M, 1M LED soft lamp strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor. Two mounting part, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.

Correction automatically, high precision, available for RGB

Global first technology patent: counterfeiting not allowed

IPC 9850 Capacity:150000-170000 CPH

Patent number: ZL 2011 2 0237740.9 ZL 20 11 2 0334606.0

ZL 2012 2 0178869.1 ZL 2012 2 0415505.0

ZL 2012 2 0415044.7 ZL 2012 2 0415356.8

ZL 2012 2 0415061.0

Company Information



Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.

Eton mission: professional, excellent technology, sharing the results.

Eton goal: to create a national brand, build international Chinese enterprise.

Eton purpose: to create value for customers, creating benefits for society.



Technical Parameter

led bulb assembly machine/smt production line

Dimension Length 2700MM
Width 2450MM
Height 1530MM
Total Weight 1400 kg
PCB PCB length width Max:330*1200 mm Min:330*80 mm
PCB thickness 0.5~5mm
PCB Clamping Adjustable pressure pneumatic.
  Mounting Mode Group to pick and group to mount
O.S. system Windows7
software R&D independently
Display LED Monitor
Input Device Keyboard, Mouse
Feeding system No. of feeders 68 PCS
No. of nozzles 34 PCS
Feeder type Electronic feeder
Vision System No. of Camera 5 sets of imported camera
  Vision for the flight identification + MARK correction
Mounting Precision ±0.02mm chip
Mounting Height <15mm
Mounting Speed 100000-150000CPH(optimum)
Components LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers.
Components Space 0.2mm
Power 220AC 50HZ
Power Consumption 5 kw
Operating Environment 23±3
Conveyor Transmission Max Length:1200 mm
Transmission Speed >500mm/sec
Transmission Direction Single(left→right or right→left)
Transmission Mode Online drive
Air pressure >5.0kg/cm2
Air consumption <100 L/min
Electrical control Independent research and development by ETON
Motion control card module 2 sets Independent research and development by ETON
X,Y Axies Driving Servo motor control for X, Y, Z axies.



Long Lifespan SMD Mounting Machine HT-F7 Mounting Mode Group To Pick / Mount 1



FAQ

Q: What are your advantages?

Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.

Q : Is there any quality guarantee?

We stick to quality first, client-oriented, Continuous improvement!

Q: What is SMT Machine?

This is an LED lamp patch machine using surface mount technology.

Q: Whether the machine's after-sale service is guaranteed?

Each of our machines has a one-year warranty and will regularly visit customers for use.




Long Lifespan SMD Mounting Machine HT-F7 Mounting Mode Group To Pick / Mount 2

Our Services



Maintenance Period: 1 year.(whole machine, any parts need to be repaired or replaced will be free)

Upgrade the software will be free

Visit customer regularly and gather information.

Provide latest information about technology and equipment.



Packaging & Shipping

Long Lifespan SMD Mounting Machine HT-F7 Mounting Mode Group To Pick / Mount 3

We use standard export packing(wooden case with vacuum packing)and deliver the goods at ShenZhen port 15days after payment.
