Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1458*1226*1437 MM | Total Weight: | 1200 KG |
|---|---|---|---|
| PCB Length Width: | Max 500*350 MM | Mounting Speed: | 40000 CPH |
| Power Supply: | 220 AC 50 HZ | Power Consumption: | 4 KW |
| High Light: | led chip making machine,led production equipment |
||

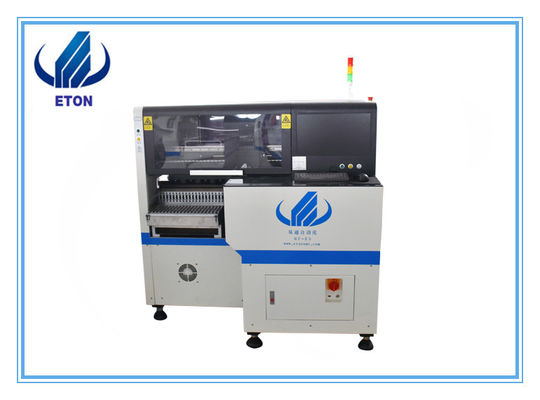

Multi-function LED path machine to create a new multi-purpose machine.
Mounting parts: LED,capacitors,resistors,ICshaped components,etc.
Multifunctional high speed module pick and place machine, can connect in serried and placing the same PCB on line.
IPC9850 Capacity: 40000 CPH
Exclusive patented technology:
Electronic feeder feeding system
Vision for the flight identification, Mark correction
Non-stop refueling capabilities
Auto-optimization feature after coordinated generated, etc.
led bulb assembly machine/smt production line
| PCB | PCB length width | Max:500*350 mm Min:100*5 0mm |
| PCB thickness | 0.5~3mm | |
| PCB Clamping | Adjustable pressure pneumatic. | |
| O.S. | system | Windows7 |
| software | R&D independently | |
| Display | LED Monitor | |
| Input Device | Keyboard, Mouse | |
| Feeding system | No. of feeders | 20PCS |
| No. of nozzles | Single module, totally 8 | |
| Feeder type | Electronic feeder |
Package: Standard export package(Wooden case with vacuum package)
Shipping: Shenzhen port within 15 days after payment
Company five level managerment policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
"No worries"after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
Eton mission: professional, excellent technology, sharing the results.
Eton goal: to create a national brand, build international Chinese enterprise.
Eton purpose: to create value for customers, creating benefits for society.
Provide latest information about technology and equipment.
HT-E5 multi-function module machine—5 units connected program..
| Vision System | No. of Camera | 2 sets of imported camera |
| Vision for the flight identification + MARK correction | ||
| Mounting Precision | ±0.02mm chip | |
| Mounting Height | <15mm | |
| Mounting Speed | 40000CPH(optimum) | |
| Components | LED, capacitors, resistors, shaped components, etc(Max:17mm Min:0402) | |
| Components Space | 0.2mm | |
| Power | 220AC 50HZ | |
| Power Consumption | 4kw | |
| Operating Environment | 23℃±3 | |
| Conveyor Transmission | Max Length:500mm | |
| Transmission Speed | >500mm/sec | |
| Transmission Direction | Single(left→right or right→left) | |
| Transmission Mode | Online drive | |
| Air pressure | >5.0kg/cm2 | |
| Electrical control | Independent research and development by ETON | |
| Motion control card module 2 sets | Independent research and development by ETON | |
| X,Y Axies Driving | Servo motor |
Our multi-function SMT machine adopts 8 suction nozzles in a total of single module, USES the technology of exclusive patent of electronic feeding system and applies to a variety of LED lamp products. Complete the use effect of multiple configurations of one machine
Q: Why choose us ?
We adopt professional, high efficiency, low consumption and specialized in research and development, production, sales and service of SMT high-speed SMT machine automation.
Q:Quality Principle
We stick to quality first, client-oriented, Continuous improvement!
Q: What is your delivery date?
The delivery date is about 15 days after receipt of payment.
Q: What's the credibility of your brand?
Our company stick to sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
