Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year,12 Months | Condition: | 100% Original |
|---|---|---|---|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine | Weight: | 1400KG |
| Mounting Speed: | 150000~180000CPH | Power: | 220AC 50Hz |

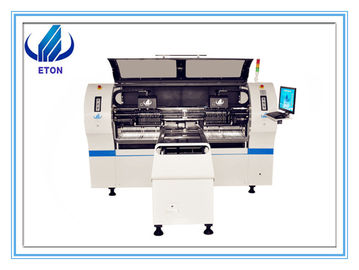

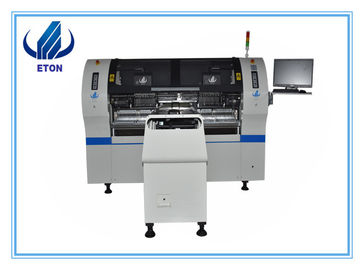

Dual-Purpose professional high-speed mounter HT-F7
Features:
1) applicable to 0.6m, 0.9m, 1.2m rigid PCB and 0.5m, 1M LED flexible strip.Using 2~4 high capacity materials, suitable for any proportion of LED chip and resistance plate.
2) two installation modules, each installation part has 18 nozzles. Parts A and B can be installed separately or synchronously.
3) exclusive patented technology: group select group assembly.
Technical parameter:
| PCB Length Width | Max:1200*330mm min:80*330mm |
| PCB Thickness | 0.5~5mm |
| No.of Camera | 5 sets of imported camera |
| Mounting Height | <15mm |
| Mounting Speed | 100000~150000CPH |
| Components | LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers |
| No.of Feeders Station | 72PCS |
| No.of nozzles | 36PCS |
| Power | 220AC 50Hz |
| Power Consumption | 5KW |
| Length*Width*Height | 1600mm*1900mm*1550mm |
| Total Weight | 1100Kg |
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
Application:
1. This is high speed pick and place machine HT-F7,32 heads,two module,each module is 16 heads,very high speed,the speed is around 150000CPH.
2.It is very suitable for tube,panel,flexible strip,linear light etc.
3.It will improve your production efficiency,save labor,space,power etc.
Company Introduction:
Shenzhen ETON Automation Equipment Co. LTD. Is a company with "efficient low consumption" as the core of the world's leading automatic high-speed take put machine manufacturers, eton is also China's largest manufacturer of high-tech at the same time, with a strong design, development, manufacture, sales and service capabilities, and was awarded "shenzhen high-tech enterprise", "high-tech enterprises in China", "shenzhen city famous brand", "2015 years of LED technology innovation award", "the fourth China LED the first innovation award", "industry special contribution award", "double soft enterprise" and so on.
Map of our customers:
Transportation:
