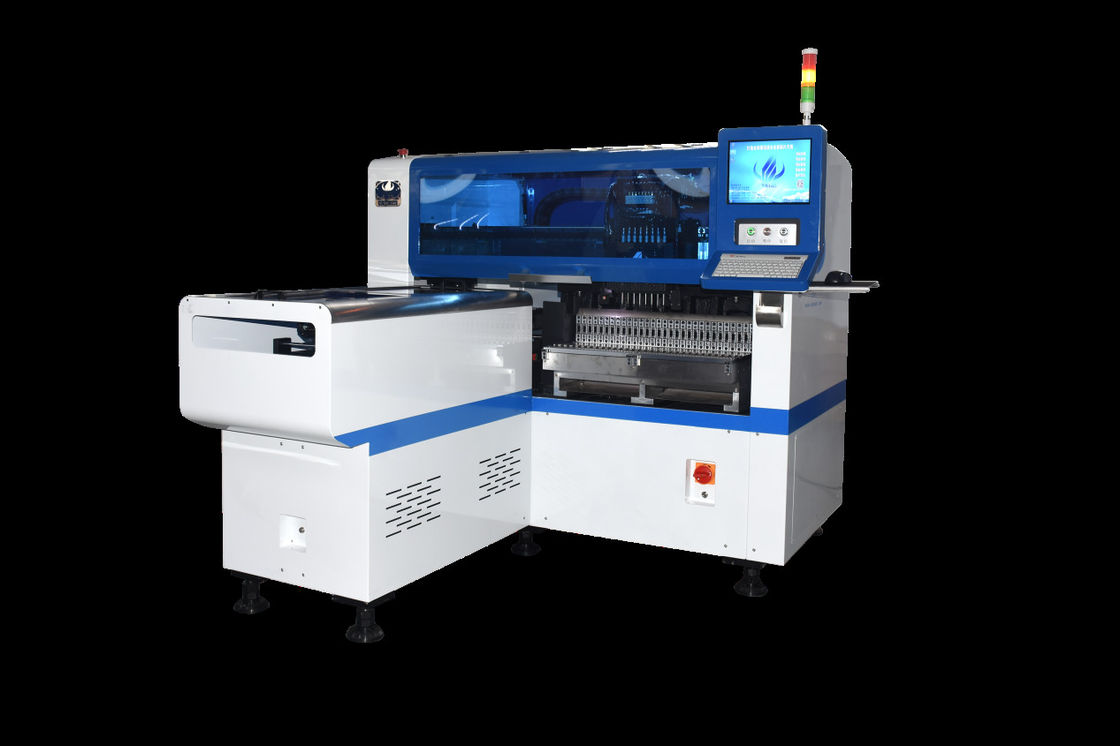

Single module magnetic linear motor multifunctional pick and place machine HT-E8S
It is our primate product, the working teams have always been dedicated to the research and development of SMT machine, which has become a widely recognized brand by customers.
Product description:
HT-E8S features 8 simultaneous pick-up heads, has been designed for ease of use, efficiency, cost effectiveness and increased expandability and compatibility. Using new, highly efficient linear servomotors, lightening and stiffening the head unit, and reviewing the placement speed of 40,000 CPH.
Features:
1) Single module Machine
2) Mounting components : LED , capacitors , resistors , IC , shaped components , etc.
3) Component:Min.size 0402 Max.height 36mm.
4) Application : Power driver . electric board . lens . linear bulb . household appliance etc.
Technical parameter
| Technical parameter |
| Length |
2550MM |
| Width |
1650MM |
| Height |
1550MM |
| Total Weight |
1250KG |
| PCB Size |
Max:1200*350mm Min:100*100mm |
| PCB Thickness |
0.5-5mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Mounting Mode |
group picking and separate placing,separate picking and separate placing. |
| No. of Camera |
2 set of imported camera |
| |
Vision for the Flight Identification,Mark correction. |
| Mounting Precision |
±0.02mm |
| Mounting Height |
<36MM |
| Mounting Speed |
40000CPH |
| Components:Max:36mm,Min:LED 0402 |
LED,resistor,capacitors,shaped components,etc. |
| Components Space |
0.2mm |
| No. of Feeders |
20PCS |
| No. of Nozzles |
8PCS |
| Feeder Style |
Use Electric Feeders |
Company Introduction:
ETON Automation Equipment Co., Ltd. is a professional manufacturer of pick and place machine. Our company independently research, development, design and manufacturer a set of high -speed good quality SMT pick and place machine. And we received a number of patents issued by the state certificate and support. Nowadays, we have served many factories and enjoyed good reputation.
With good quality, competitive price, easy operation and energy saving, our products are very popular in domestic and oversea market. And all of our machines are wildly used in electronic circuit, photovoltaic, LED industry, instruments and apparatuses.
Up to now, our products are already sold in many countries such as USA , KOREA , INDIA , GERMANY , EGYPT , TURKEY , VIETNAM , TUNISIA , THAILAND more than 20 countries.We will continue to make great efforts to satisfy the customers' requirement.
Transportation :
Supporting sea, air and land transportation.
Packing & Exhibition :
Our packing method is vacuum wooden case packing.
ETON advanced technology and innovation drives the revolution of market rapidly,we hold exhibitions at home and abroad every year .
service:
Competitive price with good quality, and great after-sales service Training more than 500 experts and technician for customers.
Provides professional SMT solutions for the full line.
Our goal is to provide customers with the best service possible and to produce excellent quality products that will meet or exceed your expectations.
