| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Condition: | 100% Original | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line |
| Product Name: | Automatic SMT Mounting Shooter | Weight: | 2800kg |
| Mounting Speed: | 80000CPH | ||
| High Light: | smt mounter machine,smt pick and place machine |
||

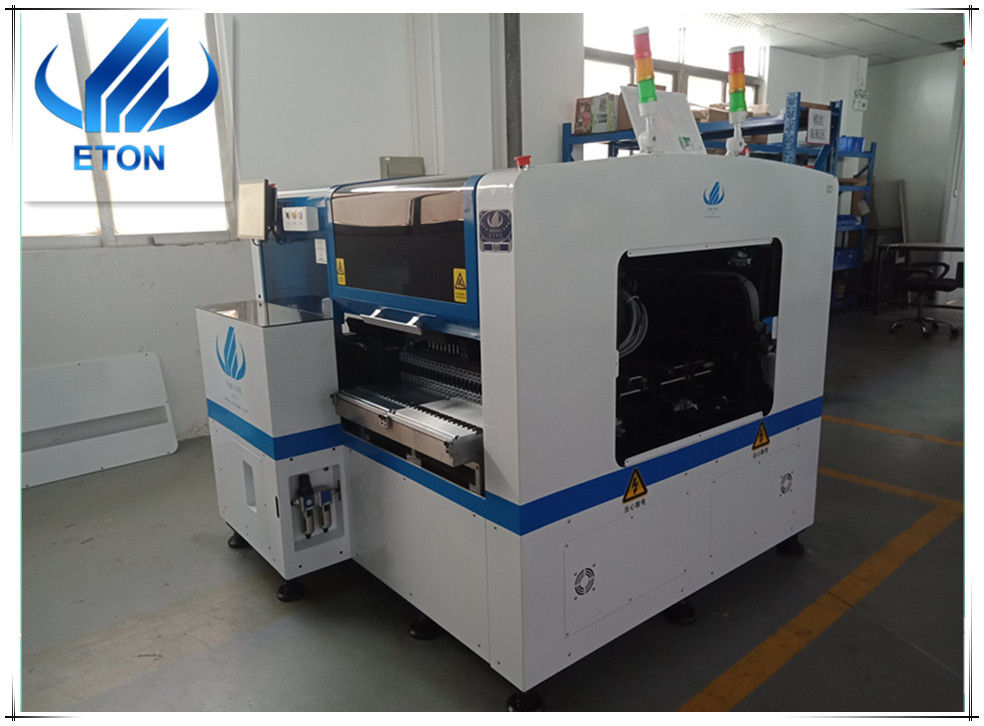

Double module magnetic linear motor multifunctional pick and place machine HT-E5D
Exclusive patented technology:
1. Electronic feeder feeding system
2. Vision alignment flight identification,Mark correction
3. Non-stop material re-loading function
4. Auto-optimization after coordinates generated,etc
Features:
1) Dual system,dual module multifunctional mounter.To produce two different products at the same time.
2) Mounting components : LED , capacitors , resistors , IC , shaped components , etc.
3) Component:Min.size 0402 Max.height 36mm
4) Application : Power driver . electric board . lens . linear bulb . household appliance etc.
Technical parameter
| Length | 3150MM |
| Width | 2250MM |
| Height | 1650MM |
| Total Weight | 2000KG |
| PCB Size | Max:1200*300mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | group picking and separate placing,separate picking and separate placing. |
| No. of Camera | 2 set of imported camera |
| Vision for the Flight Identification,Mark correction. | |
| Mounting Precision | ±0.02mm Chip |
| Mounting Height | <36MM |
| Mounting Speed | 80000CPH |
| Components:Max:36mm,Min:LED 0402 | LED,resistor,capacitors,shaped components,etc. |
| Components Space | 0.2mm |
| No. of Feeders | 40PCS |
| No. of Nozzles | Double Heads:16pcs Nozzles |
| Feeder Style | Use Electric Feeders |
Company Introduction:
ShenZhen ETON Automation Equipment Co.,LTD.is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption”in the world,meanwhile ETON also the largest high-tech manufacturer in Chine with strong capability of design,R&D,manufacturing,sales&service,and rates as “Shenzhen high-tech enterprise”“China high-tech enterprise”“Shenzhen TOP Brand”“2015LED Technology Innovation Award”“The 4th China LED First Innovation Award”“Industry Special Contribution Award”“Double soft enterprise”etc.
ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyrights,moreover.
Detail description:
Advantages:
1. Used in any product, cost-effective.
2. All components can be placement.
3. Produced in China; it with of high quality; fast placement; 16 nozzles and electric feeders.
4. Professional after-sales service team provides overseas service.
chips,resistor,capacitor,IC,shaped components etc.
Client & Transportation & Parking :
ETON got large market share in USA , KOREA , INDIA , GERMANY , EGYPT , TURKEY , VIETNAM , TUNISIA , THAILAND more than 20 countries.
Our packing method is vacuum wooden case packing.
Supporting sea, air and land transportation.
Successful Experien:
1) Eton's customer in 25 countries around the world Training more than
2) 300 experts and technician for customers.
3) Became the most reliable Chinese partner for you.
