Product Details:
Payment & Shipping Terms:
|
| Name: | Led Light Mounting Machine | Max PCB: | 330*1200 Mm |
|---|---|---|---|
| System: | Windows 7 | Precision: | 0.02 Mm |
| Apply To: | Smt Production Line | Suitable For: | LED Chip, Capacitor, Resistor,IC |
| Warranty: | One Year | Package: | Wooden Case |
| High Light: | smt pick and place equipment,smt mounter machine |
||

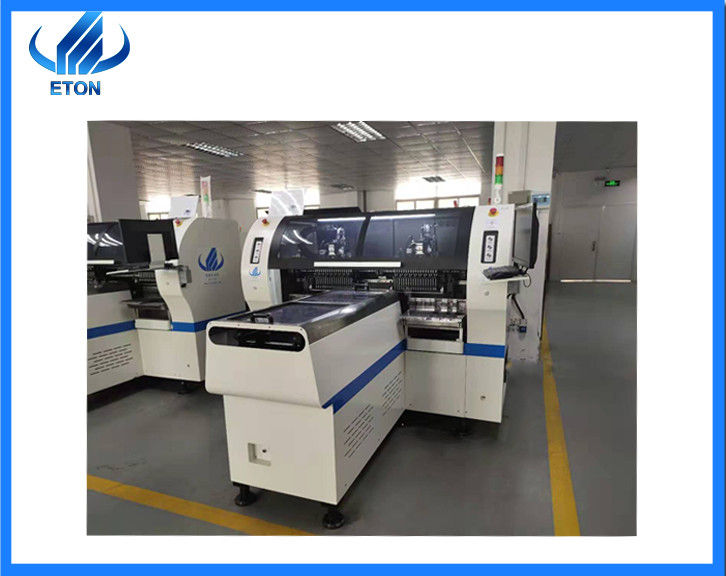

Led rigid PCB panel mounter machine
Application:
HT-XF is the mounter machine for led tube, flexible strip, display, panel light, etc. And it can mounting LED 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers, etc. Not only suitable for rigid PCB but also for flexible strip.
Features:
| Led rigid PCB panel mounter machine |
|
the capacity reach 170000 CPH |
|
Apply to the 0.6m, 0.9m, 1.2m LED rigid PCB and 0.5m, 1m flexible strip. |
|
17 nozzles for each mounting module, part A or part B can be mounted separately or synchronously. |
|
Mounting way: Group to pick and group to mount. |
Technical parameter:
| L&W&H: | 2700*1900*1530mm |
| Total weight: | 1300kg |
| PCB: | Max:330*1200mm Min:90*120mm |
| Camera: | 5 sets |
| Nozzles: | 34pcs |
| Power: | 220AC 50HZ |
| Power consumption: | 5kw |
| Mounting speed: | 150000-170000 chip per hour |
Details of HT-XF:
1.HT-XF display using led monitor, and input device is keyboard and mouse.
2.Feeding ways is using electric feeder with double motor, with convenient installation and quick operation.
3.There are total 34 pcs heads, can reach 150000-170000 chip per hour.
4.Electrical control is independent research and development by ETON.
Attention:
1.During inspection of the goods, must be sure to check it carefully, ensure unnecessary disputes.
2.It is very necessary for operator to comprehensive inspection of the machine.
3.Before using the p&p machine, you must understand the common label of placement machine.
4.Regular detection not only good for the machine running, also for the long life of machine.
Packing:
In order not to cause the machine to collide during handling, our machine packing adopt vacuum add wooden box packing. It is very firm.
Also our can accept shipping or training , even flying, it is according to the customer needs. In generally, the machine will be delivery in four weeks after payment.
Company Information:
1.ETON history
In 2007, set up the R&D center in Taipai, began to LED special purpose SMT machine technology and patent research and development.
In 2011, set up Shenzhen Eton Automation Equipment Co., Ltd. Meantime, HT-12 began selling.
Until now in 2011 to 2018, ETON have research and development more than 15 modules and a lot of honorary certificates
2.ETON mission
To create a national brand, build international Chinese enterprise.
3.ETON purpose
To create value for customers, creating benefits for society.
4.ETON vision
Determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
Service:
1.Our maintenance period is one year, we provide free charge of any parts except for vulnerable parts during warranty period.
2.Provide free installation and training
3.software and hardware lifetime maintenance.
4. Provide latest information about technology and equipment
