Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Name: | SMT Pick And Place Machine |
|---|---|---|---|
| Condition: | 100% Original | Feeders: | 30 |
| Pcb Thickness: | 0.5~3mm | Dimension: | 1650*1200*1570mm |
| High Light: | smt pick and place equipment,smt mounter machine |
||

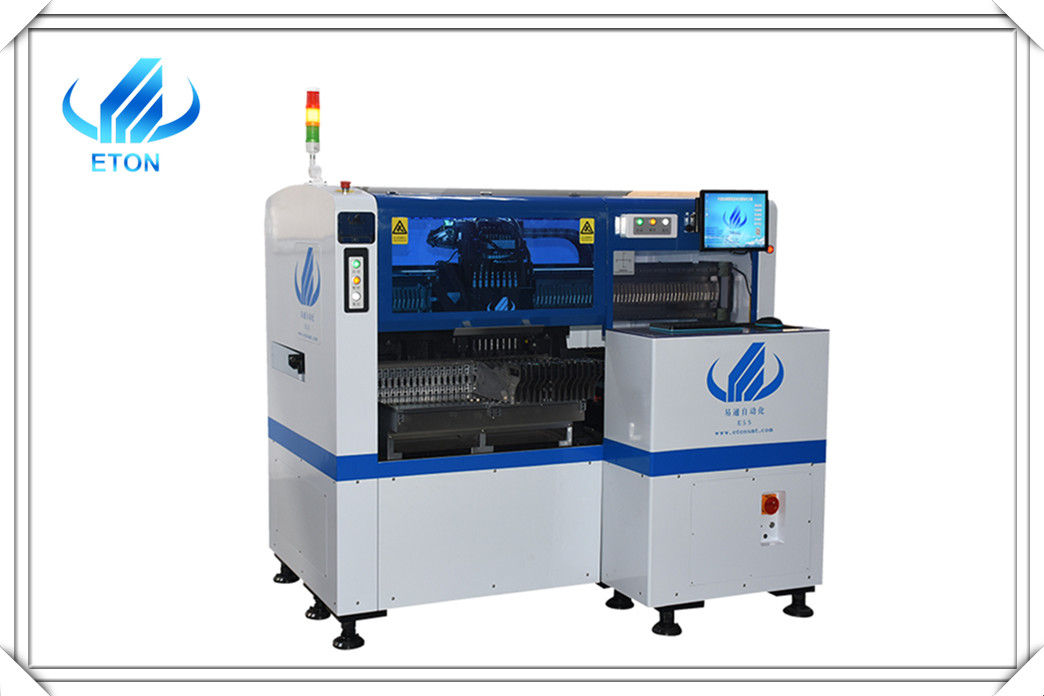

magnetic linear motor multifunctional pick and place machine HT-E5S
Product description:
1.This is multifunctional machine HT-E5S with single module,total 8 head, can produce two types of products at the same time.
2.The X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
3.It's intelligent,can produce different types of LED light and electric board,such as tube,bulb,strip,panel,downlight,streetlight,power,dri-
ver.
4.Its high precision,apply to LED chips,resistor,capacitor,IC,shaped components etc.
5.It is highs peed machine,the optimum speed is 40000CPH.
| Technical parameter | |
| Length*Width*Height | 1650*1200*1570mm |
| Total Weight | 1200kg |
| PCB Length Width | Max:500*350mm Min:100*100mm |
| Mounting Precision |
±0.02mm ,Vision alignment, Mark vision |
| Mounting speed | 40000 CPH |
| Components | LED,resistor,capacitors,shaped components,etc. |
| power/power consumption | 380AC,50Hz/ 4kw |
| No.of Feeders Station | 30PCS |
| No.of nozzles | 8PCS |
| Mounting Height | <36mm |
| Feeding way | Electric feeder with double motor |
| No.of Camera | 2 sets of imported camera |
| PCB Thickness | 0.5~3mm |
Features:
1) Single module magnetic linear motor multifunctional pick and place machine.
2) Mounting components:LED,capacitors,resistors,IC,shaped components,etc.
3) Component:Min.size 0402 Max.height 36mm.
4) Application:Power driver.electric board.lens.linear bulb.household appliance etc.
Company Introduction:
ShenZhen ETON Automation Equipment Co.,LTD.is a leading manufacturer of automatic high-speed pick and place machine.In 2011,set up ShenZhen Eton Automation Equipment Co.,Ltd.In 2011,HT-12 series began selling.In 2011,HT-E3 was complete research and development (Eton 3 generation machine).
ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyrights,moreover.
Customers cooperating with us:
Transportation & Packing :
Our packing method is vacuum wooden case packing, supporting sea, air and land transportation.
Remarks:
1.Payment terms: Deposit 30% in advance,the balance 70% should be paid before shipment by T/T.
2.Delivery time: 30 days after deposit.
3.Warranty: 1 year.(including spare parts)
Successful Experien
1) Eton's customer in 25 countries around the world Training more than
2) 300 experts and technician for customers.
3) Became the most reliable Chinese partner for you.
Our service:
1. Quick response within 24 hours;
2. Offer free spare parts and service within one year of warranty .
3. Technology Support :We will send our engineer to your factory to install machine and training freely ; Provide Demo operation video for training show you the operation .
4. Good and professional after-sales service.
