Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC
Model Number: HT-F7
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 85000 USD
Packaging Details: Wooden case
Delivery Time: 4 weeks after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Detailed Product Description
Name: Chip Mounter Max PCB: 1200*330 Mm
Min PCB: 80*330 Mm System: Windows 7
Capacity: 100000-150000 Cph Precision: 0.02 Mm
High Light:

smt pick and place equipment

,

smt mounter machine

Dual-Purpose professional high-speed mounter



(KEYWORD:High-speed mounter/High-production SMT machine/LED Light Pick and Place Machine)



Brand: ETON Warranty: 1 year
Model: HT-F7 Origin: CHINA
The Machine type:Pick and Place Machine



Application:



HT-F7 Pick and Place Machine: Length:2700mm Width:2450mm Height:1530mm Total Weight:1400kg             Two mounting modu 0

HT-F7 suitable for led panel light. led tube, led flexible strip, and so on. I t is vidily using in led lighting.



Features:



Dual-Purpose professional high-speed mounter

The capacity reach 150000 CPH

Apply to the 0.6m, 0.9m, 1.2m LED rigid PCB and 0.5m, 1m flexible strip.

36 nozzles for each mounting modul, part A or part B can be mounted separatly or synchronously.

Exclusive patent technology: Group to pick and group to mount.

Components: LED3014/3020/3528/5050 and capacitors, resistors, bridge rectifiers, etc.



Technical parameter:



HT-F7 Double module Technical Parameter
PCB
PCB Length Width Max:1200*330mm Min:80*330mm
PCB Thickness 0.5-5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group to take and group to mount
Vision System
No. of camera

5 Sets of imported camera

Vision alignment, MARK correction

Mounting precision ±0.02mm
Mounting Height 〈15mm
Mounting Speed 100000-150000CPH
Power 220AC 50Hz
Power Consumption 5KW
Conveyor Transmission                  Belt drive
Transmission Speed >500mm/sec
Air pressure >5.0Kg/ CM²
Electrical control Independent research and development by ETON
X.Y.Z Axis Driving servo motor



Structure of the machine:



HT-F7 Pick and Place Machine: Length:2700mm Width:2450mm Height:1530mm Total Weight:1400kg             Two mounting modu 1

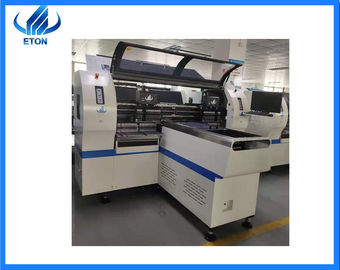

HT-F7 Pick and Place Machine:

Length:2700mm

Width:2450mm

Height:1530mm

Total Weight:1400kg





HT-F7 Pick and Place Machine: Length:2700mm Width:2450mm Height:1530mm Total Weight:1400kg             Two mounting modu 2



Two mounting modules:

18 Nozzles and 36 Electric feeders for each mounting part

X.Y.Z Axis Drive way:

servo motor control for X.Y.Z Axis Driving



Attention:



1. Before using the Pick and Place machine, you must understand the common label of the placement machine;

2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.

3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;

4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.



Logistics and delivery:



Transport: By sea
Packing: Wooden box
Arrival Time: 4 weeks after payment


Company Information:



Shenzhen ETON Automation Equipment Co. LTD. is a leading manufacturer of automatic high-speed pick and place machine focusing on “High efficiency Low consumption” in the word, meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2015 LED Technology innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.

ETON advanced technology and innovation drives the revolution of market rapidly, and obtains a number of intellectual property technologies, including 9 invention patents,12 software copyrights, moreover, ETON has invented the fastest automatic pick and place machine with speed 170000CPH, which save much labors and space of production, got large market share in USA,KOREA,INDIA,GERMANY,EYPT,TURKEY,VIENAM,TUNISIA,THAILAND more than 20 countries.



After sales service:



  • Maintenance period 1year
  • Software and hardware lifetime mauntenance
  • Visit customers regularly and gather information
  • Provide latest information about technology and equipment
