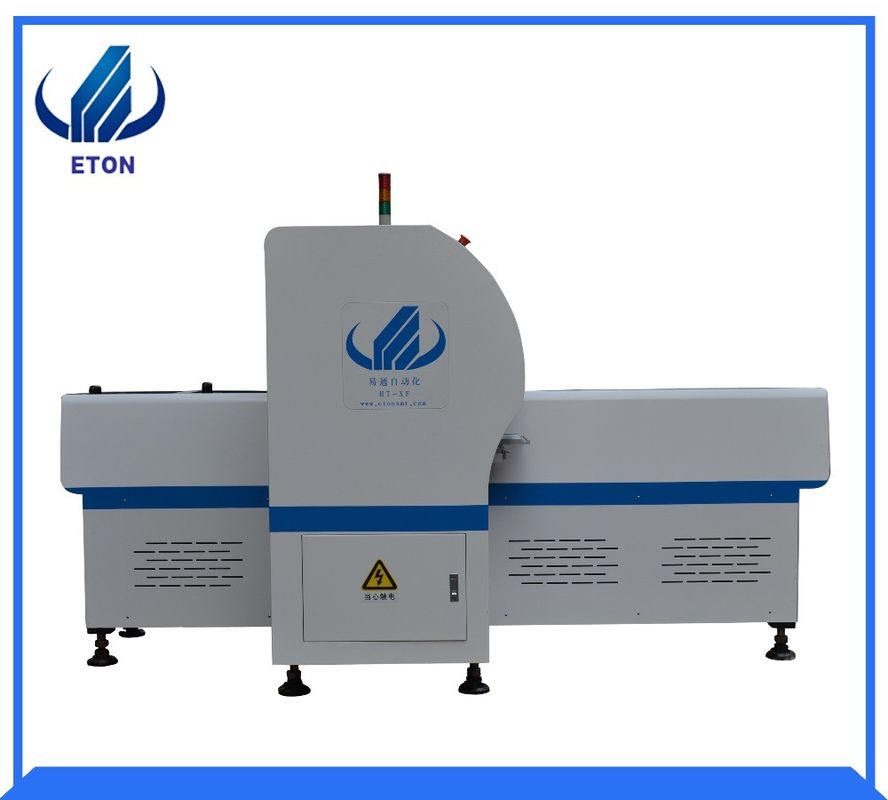

Led high-speed mounter HT-XF
Technical parameter:
| PCB Length Width |
Max:1200*330mm min:80*330mm |
| PCB Thickness |
0.5~5mm |
| No.of Camera |
5 sets of imported camera |
| Mounting Height |
<15mm |
| Mounting Speed |
100000~150000CPH |
| Components |
LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers |
| No.of Feeders Station |
72PCS |
| No.of nozzles |
36PCS |
| Power |
220AC 50Hz |
| Power Consumption |
5KW |
Project Case & Certificate:
Production solution:
This is full automatic lens production line solution and full automatic SMT production line solution
Features:
1) Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5M,1M LED flexible strip.Producing with 2~4 types of materials with high capacity,available for board with any proportion of LED chip and resistor.
2) Two mounting module,18 nozzles for each mounting part,part A or B can be mounted separately or synchronously.
3) Exclusive patent technology:Group to pick and group to mount.
Parking&shipping:
Our packing method is vacuum wooden case packing.
Supporting sea, air and land transportation.
Exhibition show:
we hold exhibitions at home and abroad every year ,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyrights,moreover.
FAQ:
Q1: Are you a manufacturer or trading company?
A1: A company integrated with R&D,manufacturing,sales&service.
Q2: What about the shipping methods?
A2:Our mode of transportation is by sea, air and road.
Q3:What’s your delivery time?
A3:Usually 30 days after deposit, if we have inventory, the time can be brought forward.
Q4:How can you make sure we will receive the machine with high quality?
A4: Our team will inspect each batch of machine before delivery, we have certificates of CE,Quality management certificate.
