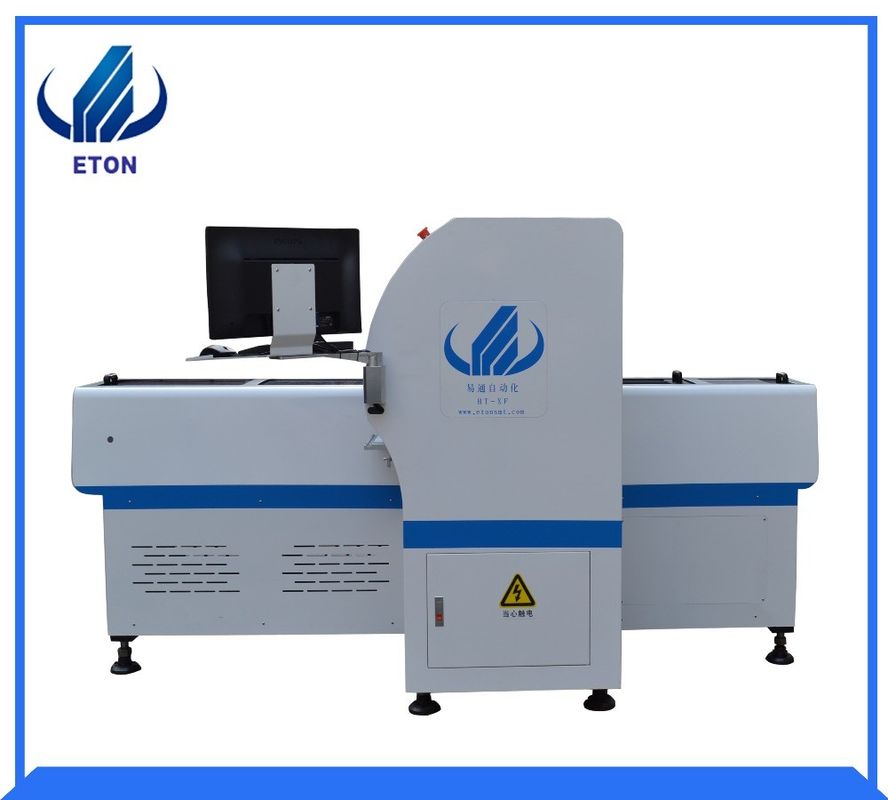

Dual-Purpose professional high-speed mounter HT-XF
| Technical parameter |
| Length*Width*Height |
2700*1900*1530mm |
| Total Weight |
1300kg |
| PCB length width |
Max:330*1200mm,Min:90*120mm |
| Mounting Precision |
±0.02mm ,Vision alignment,
Mark vision
|
| Mounting speed |
150000~170000 CPH |
| Components |
LED3014/3020/3528/5050 and resistor,capacitors,bridge rectifiers |
| power/power consumption |
220AC,50Hz/ 5kw |
| No.of Feeders Station |
34PCS |
| No.of nozzles |
34PCS |
| Mounting Height |
<15mm
|
Features:
1) Very highs-peed,the speed is around 150000~170000CPH.
2) Apply to the 0.6m,0.9m,1.2mLED rigid PCB and 0.5M,1M flexible strip.
3) Total 34 nozzles mounting module,part A or B can be mounted separately.
4) Exclusive patent technology:Group to pick and group to mount.
Company profile:
ShenZhen ETON Automation Equipment Co.,Ltd is a national high-tech enterprise which concentrates on building international brand and provides customers with professional ,efficient,low consumption and specializes in R&D,production,sales and service of SMT automatic high-speed placement machine.
ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents,12 software copyrights,moreover,ETON has invented the fastest automatic pick and place machine with speed 170000CPH,which save mach labors and space of production,got large market share in USA,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.
Parking&shipping:
FAQ:
Q1: Are you a manufacturer or trading company?
A1: A company integrated with R&D,manufacturing,sales&service.
Q2: Which language is the software? Do you provide software updates?
A2:English or Chinese. Free to upgrade software for lifetime.
Q3:This is the first time I use this kind of machine, is it easy to operate?
A3: Yes. There are English manual and guide video that show you how to use machine. If there is any doubt in the process of operating the machine, please feel free contact us. We also provide overseas on-site service.
Q4: Can we customize the machine?
A4:Of course. All of our machines can be customized.
Q5:How about the warranty?
A5: We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period.
