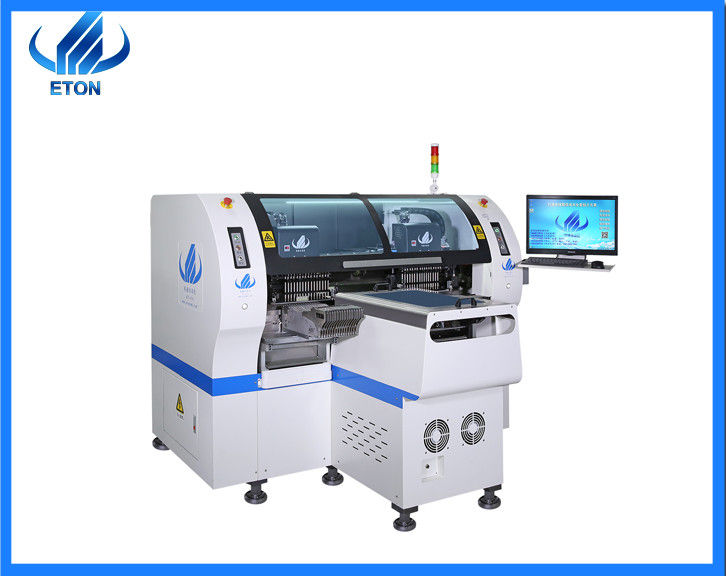

Pick and Place machine-Professional for LED display
(KEYWORD:High-speed mounter/High-production SMT machine/LED Light Pick and Place Machine)
| Brand: | ETON | Warranty: | 1 year |
| Model: | HT-F8 | Origin: | CHINA |
| The Machine type:Pick and Place Machine | |||
Application:
HT-F8 is Professional for LED Display
Features:
| Pick and Place machine-Professional for LED display |
|
The capacity reach 150000 CPH. |
|
No need support plate for mounting LED display. |
|
32 nozzles totally, part A or part B can be mounted separately or synchronously. |
|
Exclusive patent technology: Group to pick and group to mount. |
|
Components: LED2121/2727/3528/5050 and capacitors, resistors, bridge rectifiers, etc. |
Technical parameter:
| HT-F8 Pick and Place Machine Technical Parameter | |
| Dimension | |
| Length | 1600mm |
| Width | 1900mm |
| Height | 1550mm |
| Total Weight | 1100kg |
| PCB | |
| PCB Length Width | Max:600*345mm Min:80*110mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable and fix PCB automatically by software |
| Mounting Mode | Group to take and group to mount |
| Vision System | |
| No. of camera |
5 Sets of imported camera Vision alignment, MARK correction |
| Mounting precision | ±0.02mm |
| Mounting Height | 〈15mm |
| Mounting Speed | 150000CPH |
| Power | 220AC 50Hz |
| Power Consumption | 5KW |
| Conveyor Transmission | Max Length:1200mm |
| Transmission Speed | ＞500mm/sec |
| Air pressure | ＞5.0Kg/ CM² |
| Electrical control | Independent research and development by ETON |
| X.Y.Z Axis Driving | servo motor |
Product show:
Two mounting modules
16 Nozzles and 16 Electric feeders for each mounting part
PCB carrying mechanism
PCB length and width:
Max:345*600mm Min:80*110mm
PCB clamping:
Adjustable and fix PCB automatically by software
Conveyor Transmission:
max length is 1200 mm
Transmission Speed:
500mm/second
Attention:
1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.
