Name: | Pick And Place Machine | Capacity: | 150000 Cph |
---|---|---|---|
Apply: | SMT Production Line | Max Pcb Size: | 345*600 Mm |
Warranty: | One Year | Min Pcb Size: | 80*110 Mm |
High Light: | smt pick and place equipment,smt mounter machine |

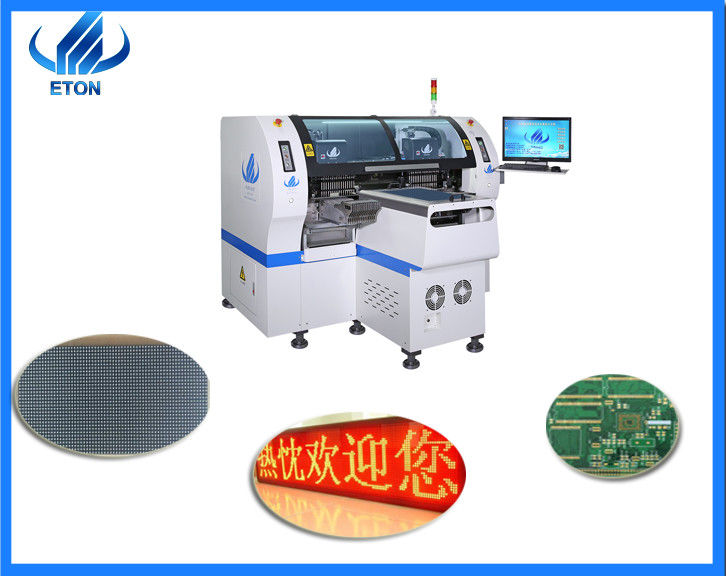

High capacity led display smt machine with 150000cph
Application:
HT-F8 is professional for produce led display:
1. Which pcb thickness is 0.5-5 mm.
2. Which pcb size is between 80*110mm to 345*600 mm.
3. Which components is LED2121/2727/3528/5050 and resistor, capacitors, bridge rectifiers,etc.
Features:
There are several features of HT-F8:
It is the pick and place machine-professional for LED display, capacity reach 150000 chip per hour.
The mounting mode is group to pick and group to mount, it is our exclusive patent technology.
There is no need support plate for mounting LED display.
The PCB clamping is adjust and fix by software.
Technical parameter:
High capacity led display smt machine with 150000cph | |
No. of camera |
5 Sets of imported camera Vision alignment, MARK correction |
Mounting precision | ±0.02mm |
Mounting Height | 〈15mm |
Mounting Speed | 150000CPH |
Power | 220AC 50Hz |
Power Consumption | 5KW |
Conveyor Transmission | Max Length:1200mm |
Transmission Speed | >500mm/sec |
Air pressure | >5.0Kg/ CM² |
Electrical control | Independent research and development by ETON |
X.Y.Z Axis Driving | servo motor |
Details of product:
1.Dimension:Length=1600mm Width=1900mm Height=1550mm
2.PCB:Max l&w=345*600 mm Minl&w=80*110mm Thickness=0.5-5mm
3.components space=0.2 mm
4. Power consumption=5 kw
5. Max Conveyor Transmission=1200 mm
6. The feeding way is electric feeder with double motor.
Attention:
For better use of machine, please notice the points:
Logistics and delivery:
Transport: | By sea/Train/Airplane( determines by customer ) |
Packing: | Wooden box with vacuum package |
Lead Time: | Around 4 weeks after payment |
Company Information:
Shenzhen ETON Automation Equipment Co.,LTD.is set up in 2011.until now, around 8 years. We are “shenzhen high-tech enterprises”, we also are “National high-tech enterprises” certification. The HT-XF is released and hot-selling in 2015. “ETON Automation” brand was awarded “Shenzhen well-known brand” high-tech enterprises. In 2016HT-F8/F7, the sixth generation high-speed pick and place machine which professional for LED display and strip. In 2018,HT-E5S/E5D,HT-E8S/E8D was completed R&D and begin selling.
We are develop quickly, we have ,many modules of pick and place machine, which are suitable for most of led light and electric board.Such as led tube,led panel, strip, lens, bulb, street lamp, and so on.
After sales service
Our after-sales service system is very perfect and can meet the needs of customers in a timely manner. In addition to the professional after-sales department, we have two offices in India that can provide services very quickly.
Of course, we also have a standard warranty period, so that customers can use it without worry. We will also send engineers to the factory to install and debug the machine, and replace the damaged parts for free during the warranty period.
In addition, we will provide the latest technical information and walk with the customers at the forefront of the industry!
