Product Details:
Payment & Shipping Terms:
|
| Total Weight: | 1100 Kg | Warranty: | 1 Year |
|---|---|---|---|
| Capacity: | 150000 Cph | Components: | LED 2121/2727/3528/5050 And Resistor, Capacitor, Capacitors, Bridge Rectifiers, Etc. |
| No Of Nozzles: | 32 Pcs | Power: | 5 Kw |
| High Light: | smt pick and place equipment,smt mounter machine |
||

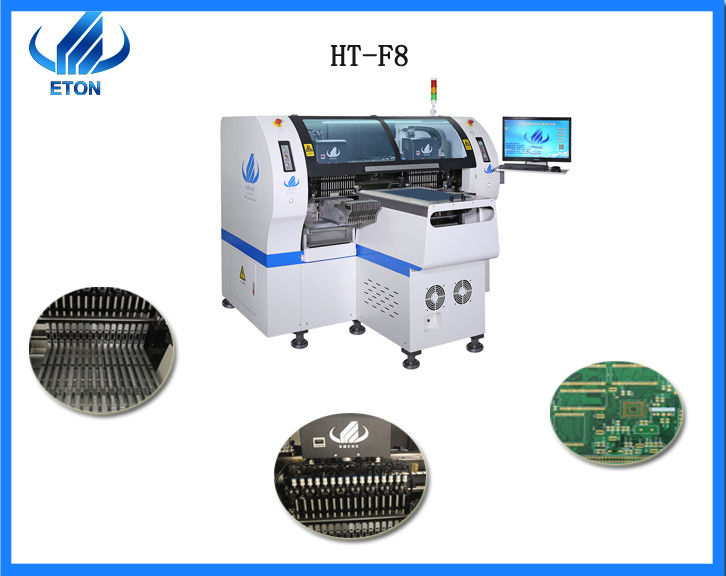

Led display pick and place machine
The automatic placement machine is used to realize high-speed, high-precision automatic placement of components, and is the most critical and complex equipment in the entire SMT production.
HT-F8 also is the automatic placement machine, it is professional for led display. And mounting led 2121/2727/3528/5050 and resistor, capacitors, bridge rectifiers, etc.
About us:
Shenzhen ETON automatic equipment Co.,LTD is a leading manufacture of automatic high-speed pick and place machine focuing on “High efficiency Low consumption”. We are set up in 2011, around 8 years.
Our technical strength is very strong, have our technology team, obtain 9 invention patents, 112 pratical patents.
We are focus on surface mounting technology, especially led mounting technology. Our pick and place machine mainly classfied two types, the high speed pick and place machine and the multifunctional pick and plce machine.
Also, HT-F8 is the high speed pick and place machine, it is mounting speed is around 150000 chip per hour. Very good performance.
Parameter:
There are details of HT-F8
| HT-F8 Pick and Place Machine Technical Parameter | |
| Dimension | |
| Length | 1600mm |
| Width | 1900mm |
| Height | 1550mm |
| Total Weight | 1100kg |
| PCB | |
| PCB Length Width | Max:600*345mm Min:80*110mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable and fix PCB automatically by software |
| Mounting Mode | Group to take and group to mount |
| Vision System | |
| No. of camera |
5 Sets of imported camera Vision alignment, MARK correction |
| Mounting precision | ±0.02mm |
| Mounting Height | 〈15mm |
Features:
1.HT-F8 is professional for produce led display.
2.It is no need support plate for mounting LED display.
3.It is adjustable and fix PCB automatically by software.
Details:
1.The max PCB length and width is 345*600 mm, the min size is 80*110 mm. This size can suitable for most led display products.
2.There are two modules, 32 nozzies totally, part A and part B can work separatly or synchronously.
3.It is suitable for led 2121/2727/3528/5050 and capacitors, resistor, bridge rectifiers, etc.
4.The max conveyor transmission length is 1200 mm.
Industry outlook:
Facing the Internet+ and big data era, as the basis of the information age, electricity production has a pillar, basic and strategic importance to the development of science and technology and the national economy. Despite the emergence, development and exploration of revolutionary and disruptive electric assembly and manufacturing technologies in the future, traditional silicon-based electricity manufacturing is still irreplaceable for a long period of time foreseen, and the placement machine is still vast. Development prospects.
