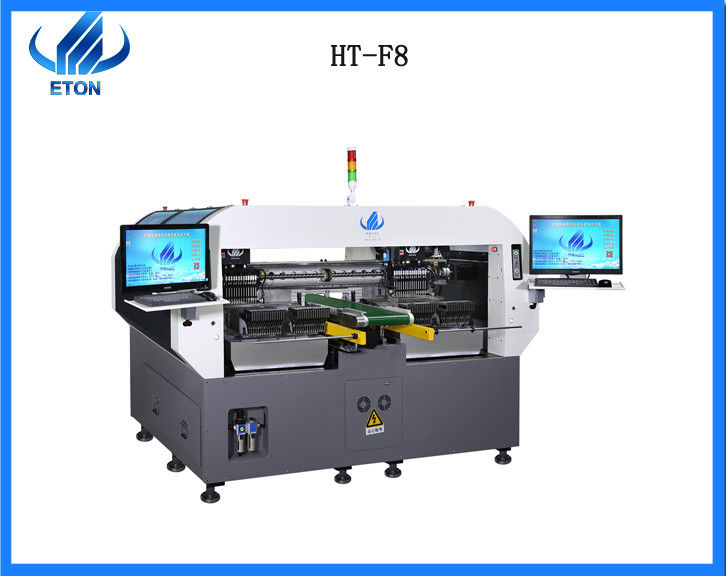

High Speed Mounter SMT Mounting Machine 0.02mm Precision For Flexible Strip

High Speed Mounter SMT Mounting Machine 0.02mm Precision For Flexible Strip
High Speed Mounter SMT Mounting Machine 0.02mm Precision For Flexible Strip

Large Image :  High Speed Mounter SMT Mounting Machine 0.02mm Precision For Flexible Strip

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC
Model Number: HT-T7
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: 95000 USD
Packaging Details: Wooden case
Delivery Time: 4 weeks after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
Warranty: 1 Year Apply: SMT Production Line
Max PCB: 250 Mm * Any Length Speed: 100000-150000 Cph
Power Consumption: 5 Kw Precision: 0.02 Mm
Highlight:

smt pick and place machine

,

smt pick and place equipment

High-speed mounter for flexible strip

(KEYWORD:High-speed mounter/High-production SMT machine/flexible strip Pick and Place Machine)



Brand: ETON Warranty: 1 year
Model: HT-T7 Origin: CHINA
The Machine type:Pick and Place Machine



Application:

High Speed Mounter SMT Mounting Machine 0.02mm Precision For Flexible Strip 0



HT-T7 suitable for any length of Flexible strip, such as 5m,10m,15m,20m,25m, 50m,etc. Also suitbale for BGA.





Features:



high-speed mounter for flexible strip

Producing with 2-4 types of materials with high capacity

Available for 5m, 50m or any length of flexible strip.

16 nozzles for each mounting module, part A or part B can be mounted separately or synchronously.

Exclusive patent technology: Group to pick and group to mount.

Calibration automatically, high precision, available for RGB.



Technical parameter:



HT-T7 Double module Technical Parameter
Dimension
Length 2200mm
Width 2910mm
Height 1550mm
Total Weight 1600kg
PCB
PCB Length Width 250mm*any length
PCB Thickness 0.5-1.5mm
PCB Clamping Adjustable pressure pneumatic
Mounting Mode Group to take and group to mount
Vision System
No. of camera

5 Sets of imported camera

Vision alignment, MARK correction
Mounting precision ±0.02mm
Mounting Height 〈15mm
Mounting Speed 100000-150000CPH
Power 220AC 50Hz
Power Consumption 5KW
Conveyor Transmission Belt drive
Transmission Speed ＞500mm/sec
Air pressure ＞5.0Kg/ CM²
Electrical control Independent research and development by ETON
X.Y.Z Axis Driving servo motor



Details:



High Speed Mounter SMT Mounting Machine 0.02mm Precision For Flexible Strip 1

PCB carrying mechanism

PCB length and width:

250mm*any length

PCB clamping:

Adjustable pressure pneumatic

Conveyor Transmission:

Belt drive

Transmission

























High Speed Mounter SMT Mounting Machine 0.02mm Precision For Flexible Strip 2





















































Two mounting modules

16 Nozzles and 32 Electric feeders for each mounting part



Attention:



1. Before using the Pick and Place machine, you must understand the basic parameters l of the placement machine;

2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.

3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;

4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.



Logistics and delivery:



Transport: By sea/Train/Airplane
Packing: Wooden box with vacuum package
Lead Time: Four weeks after payment







After sales service

  • Maintenance period 1year
  • Software and hardware lifetime maintenance
  • Visit customers regularly and gather information
  • Provide latest information about technology and equipment
