Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Capacity: | 100000-150000 Cph |
---|---|---|---|
Weight: | 1600 Kg | System: | Windows 7 |
No. Of Nozzles: | 30 Pcs | Max Pcb: | 250 Mm * Any Length |
High Light: | smt pick and place machine,smt pick and place equipment |
Flexible strip smt machine
Led flexible strip is vidily using in led lighting, usually used in the scene:
1) Home decoration (step lighting, hallway lighting, lighting decoration, edge hook decoration);
2) Path indication and exterior contour decoration, billboard backlighting, advertising signs, channel signal signs, etc.;
3) Buildings, pavilions, bridges, parks and other contours, building decoration, various indoor and outdoor lighting projects;
4) Decorative lighting for festival decoration, event venue setting, exhibition hall decoration, showcase, window, props, etc.
5) Car chassis decoration, high brake indication, body decoration, interior decoration;
6) Decorative lighting for high-end entertainment venues such as hotels, bars, KTVs, and nightclubs.

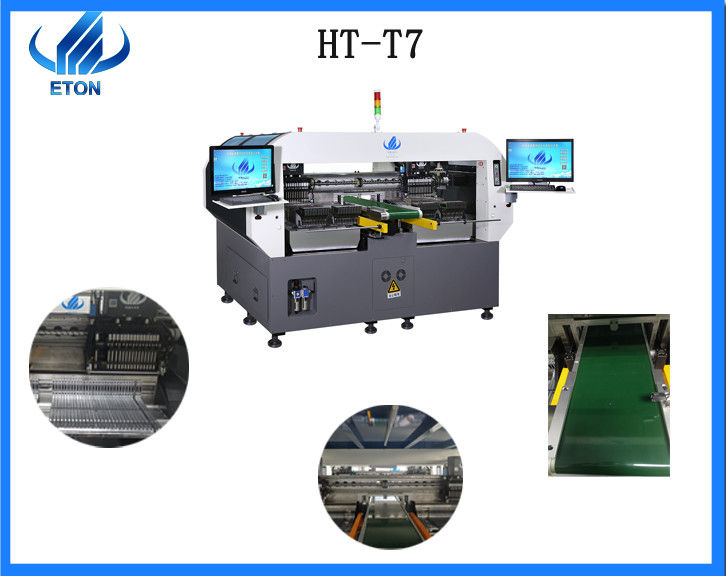

HT-T7 is suitable for producing led flexible strip:
HT-T7 is the most important pick and place machine in the led flexible strip production line.It can suitable for mounting led 3014/3020/3528/5050 and resistor, capacitors, bridge rectifiers, and so on.
High capacity:
HT-T7 can producing with 2-4 types of materials with high capacity, available for 5M, 50M or any length of flexible strip and Roll to Roll.
There are teo modules, 16 nozzles for each mounting part, part A and part B can be mounted separatly or synchronously.
And the most important for high capacity is high mounting speed, HT-T7 mounitng speed around 100000-150000 chip per hour.
Exclusive placement:
It is our exclusive patent technology: group to pick and group to mount.
PCB size:
HT-T7 PCB length and width is 250 mm * any length.
PCB thickness is 0.5-1.5 mm,
PCB clamping is adjustable pressure pneumatic,
Paramter of Vision system:
Vision system | |
No. of camera |
5 Sets of imported camera Vision alignment, MARK correction |
Mounting precision | ±0.02mm |
Mounting Height | 〈15mm |
Mounting Speed | 100000-150000CPH |
Power | 220AC 50Hz |
Power Consumption | 5KW |
Conveyor Transmission | Belt drive |
Transmission Speed | >500mm/sec |
Air pressure | >5.0Kg/ CM² |
Electrical control | Independent research and development by ETON |
X.Y.Z Axis Driving | servo motor |
ETON company:
We have been working on the development and application of led lighting placement machines since its inception. Until now, ETON have set up around 12 years, occupy the domestic market with a large share of led lights
ETON is the largest manufacture of high speed pick and place machine, we and our industry are developing rapidly.
Contact us:
If you are intersted in led flexible strip mounter, please contact us!
If you are interesed in all of led lighting mounter mahcine, also contact us! We have many models, can suitable for any need of led lighting!
