Product Details:
Payment & Shipping Terms:
|
| Apply: | SMT Production Line | Capacity: | 100000-150000 Cph |
|---|---|---|---|
| Power: | 5 Kw | No.of Nozzles: | 30 Pcs |
| Precision: | 0.02 Mm | System: | Windows 7 |
| High Light: | smt pick and place machine,smt pick and place equipment |
||
Panel light led bulb assembly machine
LED bulbs are new energy-saving lamps that replace traditional incandescent bulbs. Traditional incandescent lamps have high energy consumption and short life. Under the global resource constraints, they have been banned from production by governments. The replacement products are electronic energy-saving lamps. Although the energy-saving lamps have improved energy-saving effects. However, due to the use of many heavy metal elements that pollute the environment, there is a general trend of environmental protection. With the rapid development of LED technology, LED lighting has gradually become the new choice for new green lighting. LED is far superior to traditional lighting products in terms of lighting principle, energy saving and environmental protection.
ETON is focus on led lighting
We are set up in 2011, but we set up the R&D center in 2007, from then, began to LED special purpose SMT machine technology and patent research and development. In the past 12 years, we have focused on the production and development of LED placement machines, and have achieved great results, occupying 70% or 80% of the market share in the domestic market, and opening up the world in foreign markets. The door, and actively expand new areas, there are specialized offices abroad to better serve customers.

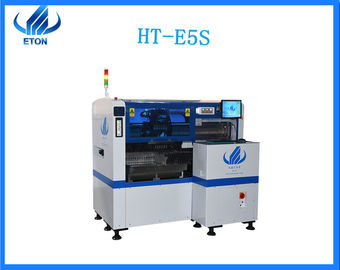

HT-E5S is suitable for led lighting
HT-E5S is multifuncrtional pick and place mahcine, it is very intelligent, can produce many king of led lighting, such as the led bulb, led lens,led panel, etc.
HT-E5S also suitable for electric board
HT-E5S not only suitable for led lighting, but also can produce electric board.The max components size is 36mm, the min size is 0402, can mounting led , capacitors, resistor, IC,shaped components,etc. So it is also suitable for electric board.Like the power driver, household appliance, etc.
The parameter of HT-E5S
| HT-E5S Technical Parameter | |
| PCB | |
| PCB Length Width | Max:500*350mm Min:100*100mm |
| PCB Thickness | 0.5-3mm |
| PCB Clamping | Electric clamping + Adjustable pressure pneumatic |
| Mounting Mode | Group Picking and separate placing/Separate picking and separate placing |
| Vision System | |
| No. of camera |
2 Sets of imported camera Vision alignment, MARK correction |
| Mounting precision | ±0.02mm |
| Mounting Height | 〈36mm |
| Mounting Speed | 40000CPH |
| Power | 380AC 50Hz |
| Power Consumption | 4KW |
| Conveyor Transmission | Max Length:500mm |
| Transmission Speed | ＞500mm/sec |
| Air pressure | ＞5.0Kg/ CM² |
| Electrical control | Independent research and development by ETON |
| X.Y.Z Axis Driving | High-end magnetic linear motor + servo motor |
From the PCB, there are obvious, HT-E5S max PCB size is 500*350mm, the thickness is 0.5-3 mm.
From the vision system,HT-E5S is with 2 sets of imported cameras, it is vision alighment and mark correction. It is mounting precision reach 0.02mm, very good performance.
From the mounitng speed, it is around 40000 chip per hour.
