Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Power: | 5 Kw |
|---|---|---|---|
| No. Of Nozzles: | 30 Pcs | Capaciry: | 100000-150000 Cph |
| Apply: | SMT Production Line | System: | Windows 7 |
| High Light: | smt pick and place machine,smt pick and place equipment |
||
led pcb assembly machine
Led chip very small, each unit LED small piece is 3-5mm square, so it can be prepared into various LED lamp bead shape devices, and is suitable for variable environment.
Led lighting energy efficient
With the rapid development of LED lighting technology, the energy saving effect of LED bulbs has reached a very high level. In the case of the same light efficiency, the energy consumption has dropped to 1/8 of incandescent lamps and 1/2 of electronic energy-saving lamps. Therefore, LED lighting products will replace today's traditional lighting products will be the general trend.
ETON is focus on led lighting
We are set up in 2011, but we set up the R&D center in 2007, from then, began to LED special purpose SMT machine technology and patent research and development. In the past 12 years, we have focused on the production and development of LED placement machines, and have achieved great results, occupying 70% or 80% of the market share in the domestic market, and opening up the world in foreign markets. The door, and actively expand new areas, there are specialized offices abroad to better serve customers.

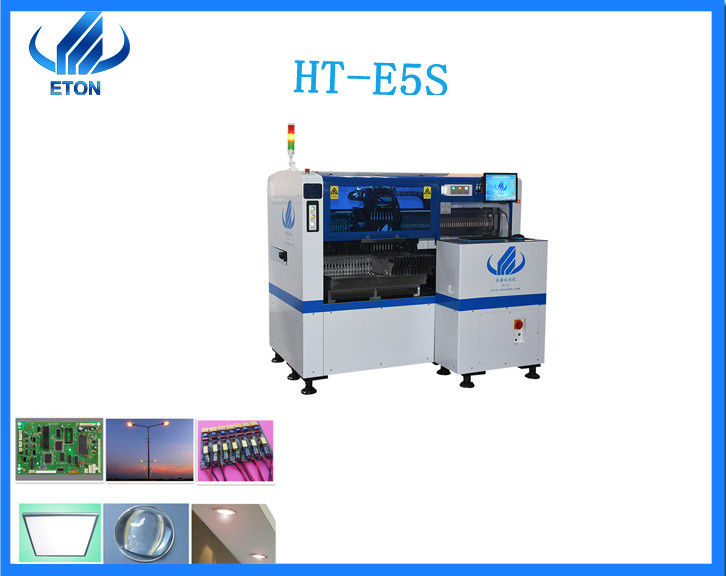

HT-E5S is good performance
HT-E5S is one of the multifunctional pick and place machine, it’s mounting precision is 0.02mm, the x axis is magnetic linear motor, the y axis and z axis is servo motor.This is why the precision is reach 0.02mm.
HT-E5S is suitable for many products
It can apply to the led bulb, led lens, led panel, street light, power driver, electric board, etc. It is very important in SMT production line.
Besides, the max pcb size of HT-E5S is 500*350mm, the min size is100*100mm.
HT-E5S with high capacity smt machine
HT-E5S with 8 nozzles and 30 pcs feeders station, it’s mounting speed is around 40000 chip per hour. Also the the feeding way is electric feeder with double motor.
Technical parameter
| HT-E5S Single module Technical Parameter | |
| Dimension | |
| Length | 1650mm |
| Width | 1200mm |
| Height | 1570mm |
| Total Weight | 1200kg |
| Vision System | |
| No. of camera |
2 Sets of imported camera Vision alignment, MARK correction |
| Mounting precision | ±0.02mm |
| Mounting Height | 〈36mm |
| Mounting Speed | 40000CPH |
| Power | 380AC 50Hz |
| Power Consumption | 4KW |
