Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Weight: | 1600 Kg |
|---|---|---|---|
| Max Pcb: | 500*350 Mm | No.of Camera: | 2 Sets |
| Components: | LED, Capacitors, Resistor, Shaped Components, Etc | Speed: | 40000 Cph |
| High Light: | smt pick and place machine,smt pick and place equipment |
||
led lamp bulb manufacturing machine
Since LED bulbs are more complex in structure than incandescent lamps, even in the case of mass production, the price of products is higher than that of incandescent lamps. Today, the price of LED bulbs is higher than that of electronic energy-saving lamps. But as more and more people know and accept, and the scale of production slowly spread, the price of LED bulbs will soon reach the level of electronic energy-saving lamps. If you calculate an energy-saving account at the time of purchase, you will find that even at a higher price, the initial purchase cost is +1 year lower than that of incandescent lamps and electronic energy-saving lamps on a one-year basis. LED bulbs can now last up to 30,000 hours.

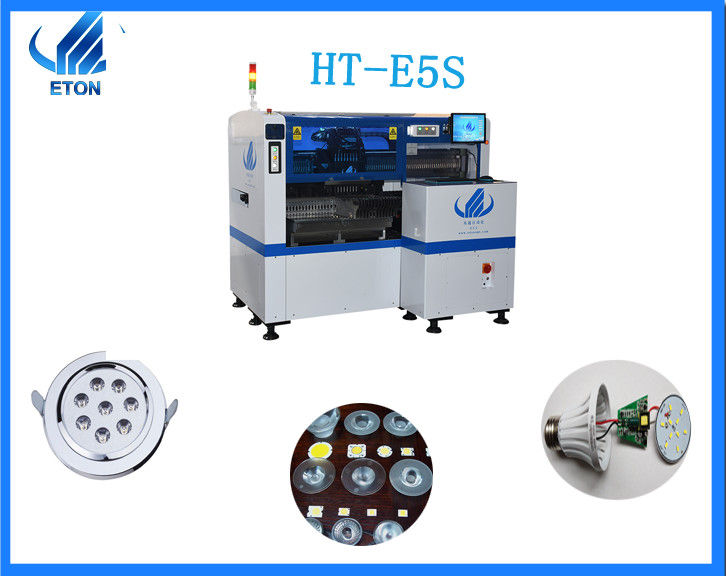

LED bulb smt machine----HT-E5S
HT-E5S is very good performance in produce led bulb.It is suitable for led, capacitors, resistors, shaped components, etc, The max size is 17mm, the min size is 0402.
And the max pcb length and width is 500*350mm, the min size is 100*100 mm. This size is suitable for most of led bulb products.
Not only led bulb
HT-E5S is not only produce led bulb, but also could produce other led products, such as the led panel , led lens, power driver, electric board, and so on.
Exclusive patented technology
1.The operating system is R&D independently.
2.The electrical control and motion control card module also is independent research and development by ETON,
3.It can support auto-opitmization after coordinates generated.
4.There are two sets of imported camera which can support vision alignment flight identification and mark correction.
Parameter:
| Length: | 1650mm | No. of camera: |
2 Sets of imported camera Vision alignment, MARK correction |
| Width: | 1200mm | Mounting precision: | ±0.02mm |
| Height: | 1570mm | Mounting Height: | 〈36mm |
| Total Weight: | 1200kg | Mounting Speed: | 40000CPH |
| PCB Length Width: | Max:500*350mm Min:100*100mm | Power: | 380AC 50Hz |
| PCB Thickness: | 0.5-3mm | Power Consumption: | 4KW |
| PCB Clamping: | Electric clamping + Adjustable pressure pneumatic | Conveyor Transmission: | Max Length:500mm |
Packing:
Our machine is with vacuum package, once again fixed with a rope and a tripod, and finally packed in a wooden box.
About us
We are a technology company in the fast-growing smt industry and a manufacturer specializing in LED placement machines.
We are the leader in the electronics industry that is highly regarded by the government and industry.
We have our own core technology and patent certificate.
We have imported more than 20 countries, got large maket share.
