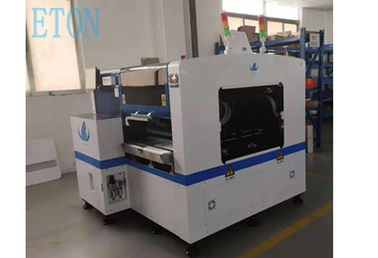

380AC 50 HZ Smt Mounter Machine Dual Module Power Driver Windows 7 System

Dual module power driver led mounter machine

Application:

The fully automatic visual placement machine plays a pivotal role in the electronic component placement of various circuit boards. It not only guarantees the placement quality of various components, but also has a fast mounting speed. The high-end visual recognition technology is applied to the tablet. Not only can the positioning accuracy be automatically calibrated, but it does not need to be segmented into the board. Therefore, it can be recognized and sought after by users in all fields.

HT-E5D can suitable for led lighting and electric board, such as the panel light,led lens, led driver,led modules and linear bulb.

Features:

HT-E5D is dual module power driver led mounter machine, it have dual system, can produce two different products at same time.

Secondly, It is electric feeder feeding system.

Thirdly, non-stop material re-loading function.

Fourthly,using vision alignment flight identification, mark correction.

Technical parameter:

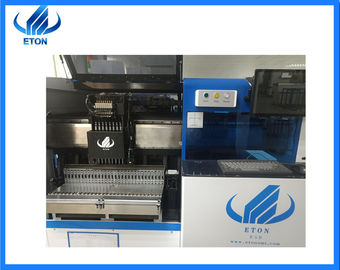

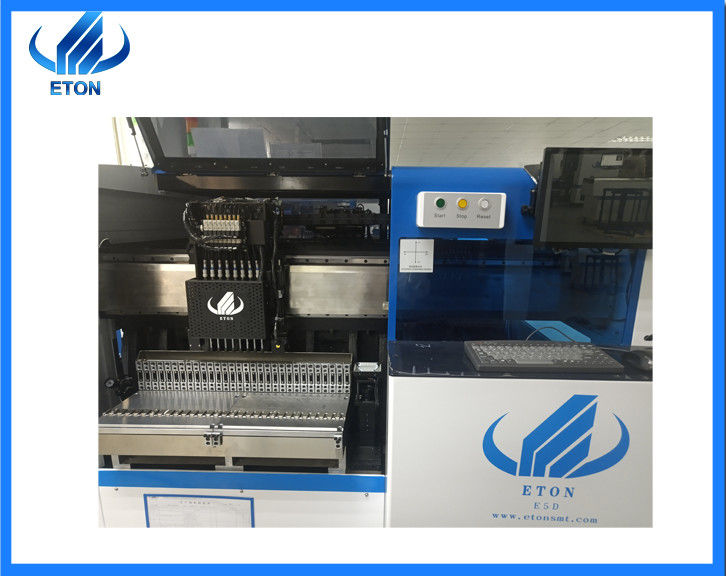

Internal parts structure of the machine:

Our pick and place machine HT-E5D is very good per performance, it is dual system, dual module multifunctional mounter machine, there are two conveyor,so it can produce two different products at same time with high capacity.

And HT-E5D is high precision, which reach 0.02mm, cause the X axis is magnetic liner motor, Y axis and Z axis is servo motor.

Attention:

When operating the pick and place machine. You must pay attention to the following points :

1. Make sure that the "interlocking" safety equipment is kept valid to stop the machine at any time, and the safety detection on the machine can not be skipped or shorted, otherwise it is very prone to personal or machine safety accidents.
2. Only one operator is allowed to operate one machine during production.
3. During the operation, it is true that parts of the body such as hands and heads are outside the range of machine movement.
4. The machine must have a proper grounding (true grounding, not a neutral line).
5. Do not use the machine in a gas or extremely dirty environment.

Logistics and delivery:

Our machines are packed in wooden cases and shipped by sea. But this is not fixed and will change according to customer requirements.

Company Information:

ETON Automation Equipment Co. LTD located in Shenzhen, China, which is set up in 2011. Focusing on the placement machine industry, there are independent production departments, R&D team, sales team and after-sales service department. There are three offices in China, namely Shenzhen, Zhongshan and Hangzhou. There are also offices in Delhi and Mumbai, India.

Meanwhile ETON is also the largest high-tech manufacturer in China with strong capability of design, R&D, manufacturing, sales and service, and rated as “Shenzhen high-tech enterprise” “China high-tech enterprise” “Shenzhen top brand” “2015 LED Technology innovation Award” “The 4^th China LED First Innovation Award” “Industry Special Contribution Award” “Double soft enterprise” etc.Our company is an international development company for global customers. Our placement machines are exported to more than 20 countries and have been well received all over the world. Such as USA,KOREA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISA ,and so on.

After sales service

After-sales service refers to a series of services provided by the manufacturer and distributor after the product (or service) is sold to the consumer, including product introduction, delivery, installation, commissioning, maintenance, technical training, on-site service, etc. After-sales service is an important measure for the production unit of the product to be responsible to consumers, and also a way to enhance the competitiveness of products.

ETON pay attention to a comprehensive after-sales service strategy.
