Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Weight: | 1250 Kg |
|---|---|---|---|
| Max Pcb: | 1200*350 Mm | System: | Windows 7 |
| Speed: | 40000 Cph | Components: | LED, Capacitors, Resistors, Shaped Components, Etc. |
| High Light: | smt pick and place machine,smt pick and place equipment |
||

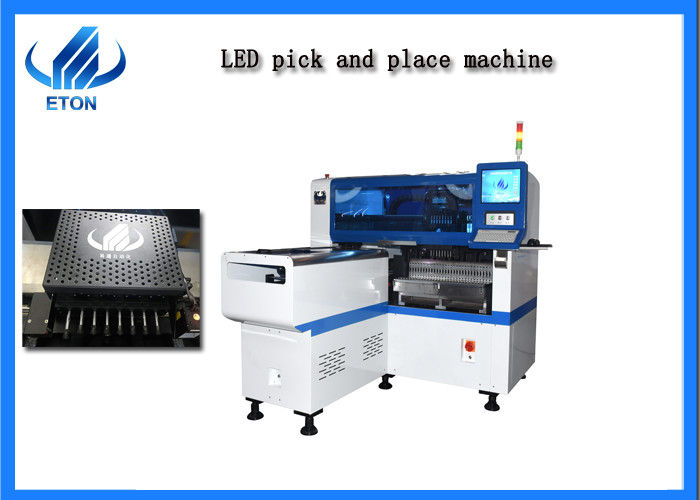

led pcb bulb assembly machine
Pick and place machine classified high speed placement machine and multi-function machine by function:
1.High speed / super high speed placement machine
2.Multi-function placement machine
Features:
Mainly based on patch components, patch devices are not many varieties.
Can mount large devices and special-shaped devices.
HT-E8S is multi-functionl placement machine, it is suitable for led, capacitors, resistors, ic, shaped components, etc. And the min size of component is 0402, the max size is 17 mm. Very intelligent, can produce led tube, panel, bulb, strip light, lens, power driver, electric board, etc.
Parameter of HT-E8S:
| HT-E8S Double module Technical Parameter | |
| Dimension | |
| Length | 2550mm |
| Width | 1650mm |
| Height | 1550mm |
| Total Weight | 1250kg |
| PCB | |
| PCB Length Width | Max:1200*350mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group Picking and separate placing/Separate picking and separate placing |
| Vision System | |
| No. of camera |
2 Sets of imported camera Vision alignment, MARK correction |
| Mounting precision | ±0.02mm |
| Mounting Height | 〈36mm |
| Mounting Speed | 40000CPH |
| Power | 380AC 50Hz |
| Power Consumption | 4KW |
| Conveyor Transmission | Max Length:1200mm |
High accuracy:
Generally speaking, for example, the placement value of the placement machine component is (0, 0), and the placement is repeated a plurality of times, and the deviation value between each time is the repetition precision. To be precise, each of the X-navigation, l, navigation, and p of the motion system has its own repeatability. The combined results reflect the placement accuracy of the placement machine. Therefore, the sampler accuracy is usually a placement machine. The repeatability is characterized by the repeatability.
The most feature of our multi-function machine is the high accuracy, it is reach 0.02 mm. Cause th e x axis is magnetic linear motor, the y axis and z axis is servo motor, very good performance.
Exclusive patented technology:
From 2011 , we have obtain a number of intellectual property technologies, including 9 invention patents, 112 pratical patents, 12 software copyrights.
For HT-E8S, there are several patented :
About us:
We are a new manufacturer of patch technology equipment established in 2011. We established a research and development center before the establishment of the company to carry out LED special placement machine technology and patent research and development. In 2008, we established Hong Kong Hongyitong Group Co., Ltd. In 2009, the first group group ET-12.ET-51 series began to sell, and obtained 4 inventions and utility model patents.
Our service:
We offer pre-sale, in-sale and after-sales services. At any stage, we will do our best to satisfy our customers.
Before the sale, we will meet the needs of customers in product design and product promotion.
In the sale, we will explain the product knowledge in detail, product details and stickers, so that customers know more about our products.
After the sale, we will do a series of work such as delivery, warranty, commissioning.
